EVN 103108 T5 white L:356mm 230V 6400K 8W ceiling light

In stock
SKU: 810282
€20.70
Into a basketIn the basketGo

Overview

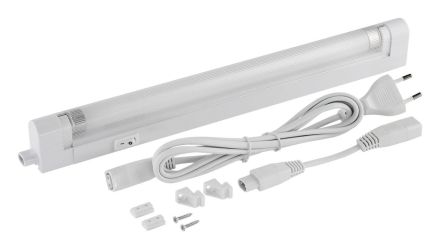

The light is perfect for use in kitchens as an under-cabinet light on wall cabinets, but can also be used as a ceiling light. The connection is made using the supplied 150cm long Euro cable. Several lights can be connected directly or using the supplied connecting cable (15cm). The light is fitted with a T5 fluorescent lamp. A connecting cable with a length of 60cm is optionally available. All required fastenings, both for wall and ceiling mounting, are included in the delivery.

PropertyValue
Max. System power:8 W
Nominal voltage:230 V
Color temperature:6400 K
With control gear:yes
With light source:yes
Width:28 mm
Length:356 mm
Socket:other
Housing color:white
Suitable for number of light sources:1
Protection class (IP):IP20
Protection class:II
Light source:Fluorescent lamp D=16 mm
Electrical connection with plug-in system:yes
With switch:yes
Material:Plastic
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:no
Covering of the luminaire with thermal insulation material possible:no
Suitable for Emergency light:no
Voltage type:AC
Light color:white
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming Potentiometer (device-integrated):no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without Dimming function:yes
With motion detector:no
Height/depth:43 mm
Type of wiring:with through-wiring
Number of poles:2
Connection type:Flat plug
Replaceable operating device:no
Constant luminous flux control:no
Integrated emergency power supply:no
Compatible with Apple HomeKit:no
Compatible with Google Assistant:no
Compatible with Amazon Alexa:no
IFTTT support available:no

Characteristics

With switchYes
HABT5 white L:356mm 230V 6400K 8W
ManufacturerEVN
HAN103108
GTIN4037293103084
Covering the luminaire with thermal insulation material possibleNo
Connection typeFlat plug
Type of wiringWith through wiring
Replaceable operating deviceNo
Width28 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Electrical connection with plug-in systemYes
Color temperature6400K
VersionOther
Suitable for number of light sources1
Suitable for emergency lightingNo
Housing colorWhite
Height/Depth43 mm
IFTTT support availableNo
Compatible with Amazon AlexaNo
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Constant luminous flux controlNo
Luminaire with limited surface temperature D-mark according to EN 60598-2-24No
LampsFluorescent lamp D=16 mm
Light colorWhite
Length356 mm
Max. system performance8W
With operating deviceYes
With motion detectorNo
With light sourceYes
Nominal voltage230V
Emergency power supply integratedNo
Without dimming functionYes
Number of poles2
IP protection)IP20
Protection classII
Voltage typeAC
MaterialPlastic
