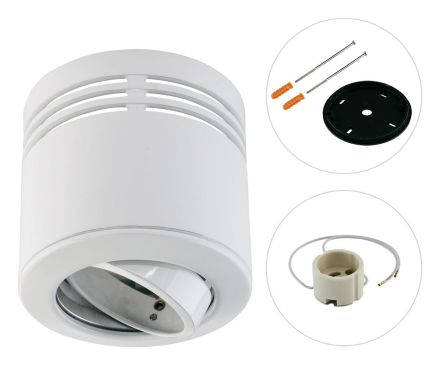

EVN 753801 round black white GU10 max.50W 230V ceiling light

EVN 753801 round black white GU10 max.50W 230V ceiling light

In stock

SKU: 810272

Price on request

€21.61

€0

Overview

Swivelling ceiling-mounted light for a wide range of indoor applications. Effect lighting, room lighting, accent lighting and much more can be implemented with this light. The high-voltage socket means that different lamps can be used in the light for a wide range of lighting requirements, regardless of whether they are halogen or LED, meaning there are almost no limits to the design options. Since the light can be connected directly to the 230V supply line, there are no additional costs for operating devices. Technical data: swivel angle: 30°, rotation range: 355°, material: brass.

Property	Value
Housing color:	white
Housing material:	other
Protection class (IP):	IP20
Outer diameter:	87 mm
Socket:	GU10
Protection class:	I
With light source:	no
With operating device:	no
Suitable for recessed mounting:	no
Height/depth:	85 mm
With motion detector:	no
Suitable for wall mounting:	no
Nominal voltage:	230 V
Suitable for ceiling mounting:	yes
Suitable for lamp power:	0.1 to 50 W
Operating device:	not required
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	without
Suitable for number of light sources:	1
Cover of the luminaire with Thermal insulation material possible:	no
Voltage type:	AC
Suitable for power rail mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	no
Light emission:	direct
Number of poles:	3
Connection type:	other
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable operating device:	no
DALI-2 dimming:	no
Constant luminous flux control:	no
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABRound black white GU10 max.50W 230V

Manufacturer

HAN753801

GTIN4037293753807

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Replaceable operating deviceNo

Outer diameter87 mm

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

VersionGU10

Suitable for number of light sources1

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power0.1 to 50 W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth85 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Light emissionDirect

With operating deviceNo

With motion detectorNo

With light sourceNo

With light sensorNo

Nominal voltage230V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionNo

Number of poles3

ReflectorWithout

IP protection)IP20

Protection classI

Voltage typeAC

AdjustabilityRotatable and pivotable

Housing materialOther
