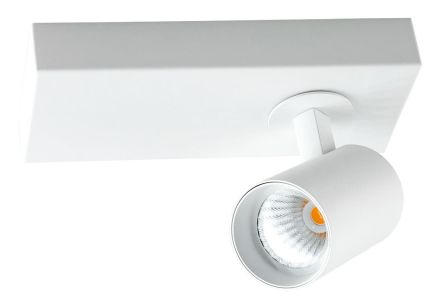

EVN AS20070102 220-240V 7W 3000K 476lm white LED wall / ceiling light

EVN AS20070102 220-240V 7W 3000K 476lm white LED wall / ceiling light

In stock

SKU: 811343

Price on request

€57.74

€0

Overview

Ceiling-mounted light for a wide range of indoor applications. Effect lighting, room lighting, accent lighting and much more can be implemented with this light. There are no additional costs for lamps with this light, as the power is supplied by a permanently installed LED chip. Since the control gear is built into the light, there are no additional costs for this either. The spot can be rotated 350° and swiveled to one side, with a swivel angle of 90°.

Property	Value
System power:	7 W
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	55 mm
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for Built-in installation:	no
Length:	200 mm
Width:	85 mm
Height/depth:	130 mm
With motion detector:	no
Suitable for wall mounting:	yes
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Beam angle:	medium beam 21-40°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high-gloss
Luminous flux:	476 lm
Cover material:	transparent glass
Luminaire cover with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for Surface mounting:	yes
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	yes
Dimming leading edge:	yes
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	no
Light distributor:	Reflector
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-10 to 50 °C
Luminous intensity:	1391 cd
Type of wiring:	Termination
Number of poles:	3
Connection type:	Screw terminal
Luminous efficacy:	68 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Replaceable operating device:	yes
DALI-2 dimming:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HAB220-240V 7W 3000K 476lm white

Manufacturer

HANAS20070102

GTIN4037293022477

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter55 mm

Rated ambient temperature according to IEC 62722-2-1-10 to 50 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width85 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeYes

Dimming phase controlYes

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorWhite

Height/Depth130 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy68lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux476lm

Light intensity1391 cd

Light distributorReflector

Light distributionSymmetrical

Length200 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionNo

Number of poles3

ReflectorHigh gloss

IP protection)IP20

Protection classI

Voltage typeAC

System performance7W

AdjustabilityRotatable and pivotable

Cover materialGlass transparent

Housing materialAluminum
