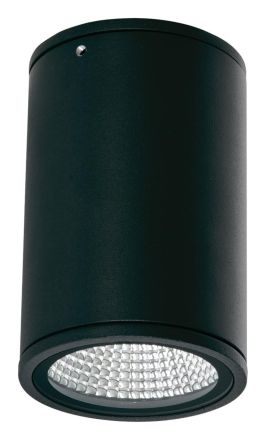

EVN C541511202 round rigid anthracite 12W 230V IP54 ww LED ceiling light

EVN C541511202 round rigid anthracite 12W 230V IP54 ww LED ceiling light

In stock

SKU: 810335

Price on request

€130

€0

Overview

Ceiling-mounted light for a wide range of indoor applications. Due to the protection class, the light can also be used in protected outdoor areas. Effect lighting, room lighting, accent lighting and much more can be implemented with this light. Additional costs for lamps are eliminated with this light, as the power is supplied by a permanently installed LED chip. Since the light can be connected directly to the 230V supply line, additional costs for operating devices are also eliminated.

Property	Value
System power:	12 W
Housing color:	anthracite
Housing material:	aluminum
Protection class (IP):	IP54
Outer diameter:	90 mm
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for Recessed installation:	no
Height/depth:	138 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Nominal voltage:	100 to 240 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Beam angle:	wide beam 41-80°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high gloss
Luminous flux:	850 lm
Cover material:	transparent glass
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for Busbar mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface protection:	powder-coated
Surface brushed:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Light distributor:	reflector
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-20 to 40 °C
Luminous intensity:	839 cd
Type of wiring:	Termination
Number of poles:	3
Connection type:	screw terminal
Luminous efficacy:	70 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Replaceable operating device:	yes
DALI-2 dimming:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABRound rigid anthracite 12W 230V IP54 ww

Manufacturer

HANC541511202

GTIN4037293013703

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Beam angleWide beam 41-80°

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter90 mm

Rated ambient temperature according to IEC 62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorAnthracite

Height/Depth138 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy70lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux850lm

Light intensity839 cd

Light distributorReflector

Light distributionSymmetrical

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage100 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Number of poles3

ReflectorHigh gloss

IP protection)IP54

Protection classI

Voltage typeAC

System performance12W

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
