EVN L0600102 round white 7W 3000K 590lm 30° 240V LED ceiling light

EVN L0600102 round white 7W 3000K 590lm 30° 240V LED ceiling light

In stock

SKU: 810685

Price on request

€22.98

€0

Overview

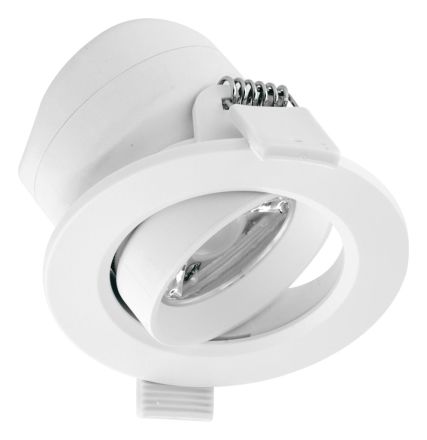

Pivoting recessed ceiling light for a wide range of indoor applications. Effect lighting, accent lighting and much more can be implemented with this light. Since both the LED chip and the operating device are permanently installed in the light, there are no additional costs. The pivoting angle is 30°.

Property	Value
System power:	7 W
Housing color:	white
Housing material:	plastic
Protection class (IP):	IP20
Outer diameter:	85 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	57 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	60 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Beam angle:	medium beam 21-40°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high-gloss
Luminous flux:	590 lm
Cover material:	structured glass
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for Clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-20 to 40 °C
Luminous intensity:	1919 cd
Number of poles:	2
Connection type:	other
Luminous efficacy:	84 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable control gear:	no
Dimming DALI-2:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Installation diameter:	68 mm
Emergency power supply integrated:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABRound white 7W 3000K 590lm 30° 240V

Manufacturer

HANL0600102

GTIN4037293003377

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter85 mm

Rated ambient temperature according to IEC 62722-2-1-20 to 40 °C

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter68 mm

Installation height/depth57 mm

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth60 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy84lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux590lm

Light intensity1919 cd

Light distributorReflector

Light distributionSymmetrical

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Without dimming functionYes

Number of poles2

ReflectorHigh gloss

IP protection)IP20

Protection classII

Voltage typeAC

System performance7W

AdjustabilitySwiveling

Cover materialGlass structured

Housing materialPlastic
