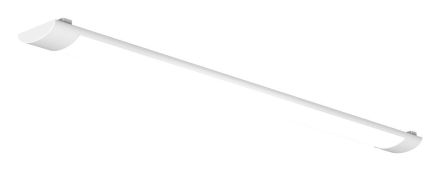

EVN L12134840W rigid white 48W 4000K 4200lm L:1213mm LED wall / ceiling light LB20

EVN L12134840W rigid white 48W 4000K 4200lm L:1213mm LED wall / ceiling light LB20

In stock

SKU: 810737

Price on request

€133.33

€0

Overview

Due to its high light output, the LED light bar can easily be used as the main lighting for numerous rooms. Thanks to its elegant design, it blends harmoniously into any environment. The cable is fed into the terminal compartment, which is discreetly housed behind the side cover, from the back. If there is no connection directly on the ceiling, the light can be mounted using the spacers provided, which allows the cable to be fed in from the side. The spacers have a mounting height of 10mm.

Property	Value
Max. System power:	48 W
Nominal voltage:	220 to 240 V
Luminous flux:	5554 lm
Color temperature:	4000 K
With control gear:	yes
With light source:	yes
Width:	120 mm
Length:	1213 mm
Housing color:	white
Control gear:	LED control gear, current-controlled
Protection class (IP):	IP20
Protection class:	I
Light source:	LED not replaceable
Electrical connection with plug-in system:	no
With switch:	no
Material:	metal/plastic
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Covering of the luminaire with thermal insulation material possible:	no
Suitable for Emergency light:	no
Voltage type:	AC
Light color:	white
Color rendering index CRI:	80-89
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	yes
With motion detector:	no
Height/depth:	30 mm
Number of poles:	3
Connection type:	Screw terminal
Replaceable operating device:	no
Constant luminous flux control:	no
Integrated emergency power supply:	no
Adjustable color temperature:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

With switchNo

HABRigid white 48W 4000K 4200lm L:1213mm

Manufacturer

HANL12134840W

GTIN4037293003810

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Beam angle adjustableNo

Replaceable operating deviceNo

Operating deviceLED control gear current controlled

Width120 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Electrical connection with plug-in systemNo

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for emergency lightingNo

Housing colorWhite

Height/Depth30 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

LampsLED not replaceable

Light colorWhite

Luminous flux5554lm

Luminous flux adjustableNo

Length1213 mm

Max. system performance48W

With operating deviceYes

With motion detectorNo

With light sourceYes

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Without dimming functionYes

Number of poles3

IP protection)IP20

Protection classI

Voltage typeAC

MaterialMetal, plastic
