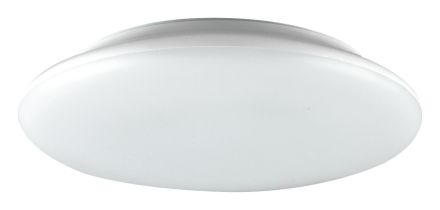

EVN L30180125 Catino 3000K 4000K 5700K 1790lm 1900lm LED ceiling light

In stock
SKU: 811478
€64.99
Into a basketIn the basketGo

Overview

LED surface-mounted light for various applications, such as comprehensive but also effective lighting in hallways, living rooms, offices and much more. Due to the protection class and UV resistance, the light can also be used in protected outdoor areas without any problems. One of three possible color temperatures can be set using the switch on the back. The possible color temperatures and resulting lumens are: 3000K (1790lm), 4000K (1900lm) and 5700K (1840lm). The large-area light emission always creates very homogeneous illumination.

PropertyValue
System power:18 W
Luminous flux:1900 lm
Height/depth:60 mm
Protection rating (IP):IP54
Protection class:II
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:no
Nominal voltage:200 to 240 V
Housing color:white
Material of Housing:Plastic
Color temperature:3000 to 5700 K
Impact resistance:IK06
Color rendering index CRI:80-89
Suitable for ceiling mounting:yes
Outer diameter:300 mm
Voltage type:AC
With motion detector:no
Beam angle:extremely wide beam>80°
With light source:yes
Light source:LED not replaceable
Temperature:-20 to 45 °C
Connection type:Screw terminal
With operating device:yes
Cover material:Plastic opal
Without dimming function:no
Light emission:direct
Light distribution:symmetrical
With light sensor:no
Operating device:LED operating device current-controlled
Suitable for Recessed installation:no
Light color:white
Suitable for computer workstations in accordance with EN 12464-1:no
Suitable for strip light configuration:no
Suitable for pendant suspension:no
Suitable for surface mounting:yes
Suitable for emergency lighting:no
Design of the grid:without
Covering of the luminaire with thermal insulation material possible:no
Dimming DMX:no
Dimming DSI:no
With air slots:no
Dimming LineSwitch:no
Dimming Potentiometer (device-integrated):no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming manufacturer-specific:no
Dimming DALI:no
Dimming Mains voltage modulation:no
Dimming trailing edge:yes
Dimming leading edge:yes
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with Push-button:no
Number of poles:2
Nominal current:225 mA
Replaceable operating device:no
DALI-2 dimming:no
Luminous flux maintenance at average. Service life 50,000 h at 25 °C ambient temperature:20 %
Integrated emergency power supply:no
Constant luminous flux control:no
Adjustable color temperature:levels
Adjustable beam angle:no
Operation via Bluetooth:no
Compatible with Apple HomeKit:no
Compatible with Google Assistant:no
Compatible with Amazon Alexa:no
IFTTT support available:no

Characteristics

HABCatino 3000K 4000K 5700K 1790lm 1900lm
ManufacturerEVN
HANL30180125
GTIN4037293023917
Covering the luminaire with thermal insulation material possibleNo
Connection typeScrew terminal
Execution of the gridWithout
Beam angle adjustableNo
Replaceable operating deviceNo
Outer diameter300 mm
Operation via BluetoothNo
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DALI-2No
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeYes
Dimming phase controlYes
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000 to 5700 K
Color temperature adjustableStages
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Housing colorWhite
Height/Depth60 mm
IFTTT support availableNo
Compatible with Amazon AlexaNo
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Constant luminous flux controlNo
Luminaire with limited surface temperature D-mark according to EN 60598-2-24No
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux1900lm
Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.20 %
Light distributionSymmetrical
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage200 to 240 V
Rated current225mA
Emergency power supply integratedNo
Without dimming functionNo
Number of poles2
Impact resistanceIK06
IP protection)IP54
Protection classII
Voltage typeAC
System performance18W
Temperature-20 to 45 °C
Cover materialPlastic opal
Housing materialPlastic
