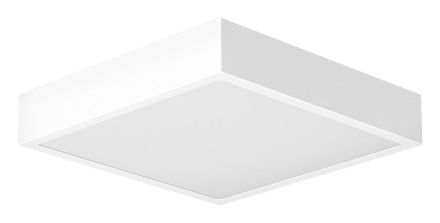

EVN LPQD220102 24W 3000K 1750lm 220-240V quad. white LED ceiling light

EVN LPQD220102 24W 3000K 1750lm 220-240V quad. white LED ceiling light

In stock

SKU: 811166

Price on request

€79.36

€0

Overview

LED surface-mounted panel for various applications, such as comprehensive but also effective lighting in hallways, living rooms, offices, and much more. The panel is only suitable for indoor use. The panel can be mounted on both ceilings and walls. The large-area light output always ensures very homogeneous illumination of the room.

Property	Value
System power:	24 W
Luminous flux:	1750 lm
Length:	225 mm
Width:	225 mm
Height/depth:	42 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing colour:	white
Housing material:	aluminium
Colour temperature:	3000 K
Impact resistance:	IK08
Colour rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam>80°
With Light source:	yes
Light source:	LED not replaceable
Temperature:	-20 to 40 °C
Connection type:	screw terminal
With control gear:	yes
Cover material:	opal plastic
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Control gear:	LED control gear current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming Mains voltage modulation:	no
Dimming Trailing edge phase control:	yes
Dimming leading edge phase control:	yes
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Luminous efficacy:	72 lm/W
Number of poles:	3
Surface protection Housing:	powder-coated
Nominal current:	700 mA
Replaceable operating device:	yes
DALI-2 dimming:	no
Integrated emergency power supply:	no
Constant luminous flux control:	no
Luminous intensity:	557 cd
Adjustable color temperature:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HAB24W 3000K 1750lm 220-240V quad. white

Manufacturer

HANLPQD220102

GTIN4037293021289

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Beam angle adjustableNo

Replaceable operating deviceYes

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width225 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeYes

Dimming phase controlYes

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Height/Depth42 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy72lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1750lm

Light intensity557 cd

Light distributionSymmetrical

Length225 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Rated current700mA

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionNo

Number of poles3

Impact resistanceIK08

IP protection)IP20

Protection classI

Voltage typeAC

System performance24W

Temperature-20 to 40 °C

Cover materialPlastic opal

Housing materialAluminum
