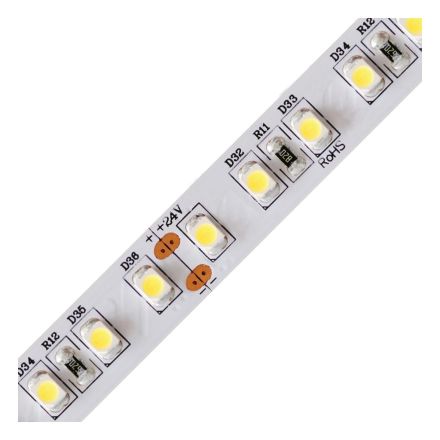

EVN SK2024602802 IP20 24V 9.6W/m 912lm/m 3000K L:5cm LED strip light

EVN SK2024602802 IP20 24V 9.6W/m 912lm/m 3000K L:5cm LED strip light

In stock

SKU: 811515

Price on request

€1.71

€0

Overview

The LED strip can be made to any desired length (in meters) up to a maximum of 50m, taking into account the pitch of 50mm. The maximum feed-in length for one-sided feed-in is 6m. The ready-made strip is delivered as standard with a 0.5m long connection cable on one side (cable cross-section: 0.3mm). Important: To avoid overheating of the strip, it may only be installed on heat-conducting surfaces, preferably on or in aluminum profiles. Exact binning allows color tolerances of a maximum of +/-50K. The light output is 912lm per meter.

Property	Value
Voltage type:	DC
Lamp power per meter:	9.6 W
Width:	8 mm
Beam angle:	120 °
Color temperature:	3000 K
Protection class (IP):	IP20
Luminous flux per meter:	912 lm
Protection class:	III
Height/depth:	2 mm
With Connection set:	no
Length of the individual sections:	50 mm
Number of lamps per meter:	120
Design:	Band
With end piece:	no
Lamp:	LED not replaceable
Self-adhesive:	yes
Mounting type:	Surface-mounted/built-in
Lamp voltage:	24 V
Operating device:	LED operating device voltage controlled
Light colour:	white
Color rendering index CRI:	80-89
With protective cover:	no
Number of poles:	2
Connection type:	soldering
Suitable for dimmer:	yes
Replaceable operating device:	no
Luminous flux maintenance at average. Service life 50,000 h at 25 °C ambient temperature:	30 %
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

With end pieceNo

With connection setNo

Suitable for dimmersYes

HABIP20 24V 9.6W/m 912lm/m 3000K L:5cm

Manufacturer

HANSK2024602802

GTIN4037293016469

Connection typeSoldering

Number of lamps per meter120

VersionTape

Beam angle120°

Beam angle adjustableNo

Replaceable operating deviceNo

Operating deviceLED control gear voltage controlled

Width8 mm

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Height/Depth2 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Lamp power per meter9.6W

Lamp voltage24V

LampsLED not replaceable

Light colorWhite

Luminous flux per meter912lm

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.30 %

Length of each section50 mm

With protective coverNo

Mounting typeConstruction/Installation

Number of poles2

IP protection)IP20

Protection classIII

Self-adhesiveYes

Voltage typeDC
