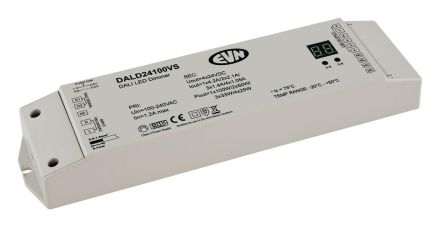

DALI multicolor receiver with integrated power supply for unicolor, tunable white, RGB and RGBW lights with manual or automatic DALI address setting. An additional operating device is not required as the receiver also functions as such. The output can be set as 1-4 channels. Optionally, the receiver can also be dimmed via Push-L (as 1-channel). Connections: 1x input for DALI bus or Push-L, 1x input for 100-240V/AC and 4x output for 24V/DC (power per output: 0.1-25W). The screw terminals are suitable for cables from 0.5mm - 1.5mm. Technical data: ta: -20°C - 50°C, tc: 75°C. For unicolor applications, up to 100W can be connected to one channel. Conforms to IEC 60929 standard protocol. Protocol: DT6, DALI2.
