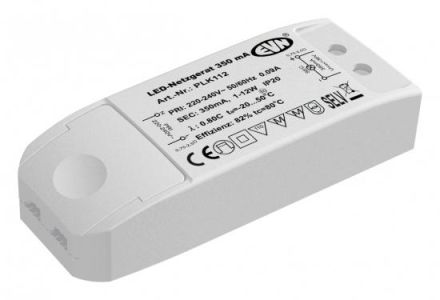

The short-circuit-proof safety transformer can be used in furniture construction without any problems, as it has the MM marking. The connection on the primary and secondary sides is made using screw terminals, which are suitable for cables of 0.75mm - 2.5mm. Technical data: Supply voltage: 220-240V/AC, ta: -20°C - 50°C, tc: 80°C, power factor 0.80.
| Property | Value |
| Output power: | 1 to 12 W |
| Protection class (IP): | IP20 |
| Output current: | 350 mA |
| Protection class: | II |
| Length: | 98 mm |
| Width: | 39 mm |
| Height: | 22 mm |
| Design: | static |
| Housing: | plastic housing |
| Suitable for Outdoor use: | no |
| Suitable for constant voltage: | no |
| Suitable for constant current: | yes |
| Suitable for direct voltage (primary side): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DSI: | no |
| Dimming DMX: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Constant luminous flux control: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
