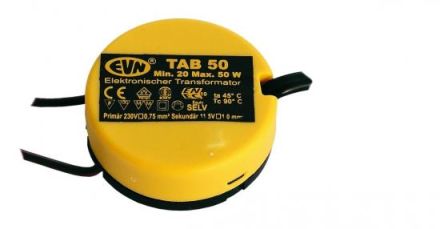

EVN TAB50 12V/AC 20-50W Primary: 230V/AC Transformer

In stock
SKU: 809759
€27.30
Into a basketIn the basketGo

Overview

Due to its small dimensions, the electronic halogen transformer can be easily installed in the ceiling through the hole cutout, starting at 48mm diameter, of the lamp to be supplied. Due to the flat design, it can be used with substructures starting at 24mm. Technical data: ta: max. 45°C, tc: 80°C, output voltage tolerance: +6/-10%

PropertyValue
Power:20 to 50 W
Number of outlets (pairs):1
Connection type primary side:unassembled connection cable
Housing material:plastic
Connection type secondary side:unassembled connection cable
Type of transformer:electronic transformer
Short-circuit proof:yes
Protection class (IP):IP20
Safety transformer:yes
Height:19 mm
Diameter:47 mm
Color:yellow
With secondary circuit breaker:no
Input voltage:230 V
Construction:yes
Installation:yes
Overload protection:yes
Overtemperature protection:yes
Output voltage:11.5 V
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DSI:no
Dimming DMX:no
Dimming Potentiometer (device-integrated):no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming Trailing edge:yes
Dimming leading edge:yes
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:no
Compatible with Apple HomeKit:no
Compatible with Google Assistant:no
Compatible with Amazon Alexa:no
IFTTT support available:no

Characteristics

Input voltage230 V
HAB12V/AC 20-50W Primary: 230V/AC
ManufacturerEVN
HANTAB50
GTIN4037293010504
Output voltage11.5V
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeYes
Dimming phase controlYes
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Diameter47 mm
ColorYellow
Height19 mm
IFTTT support availableNo
Compatible with Amazon AlexaNo
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Performance20 to 50 W
Without dimming functionNo
IP protection)IP20
Housing materialPlastic
EVN TAB50 12V/AC 20-50W Primary: 230V/AC Transformer
