EVN 230902 9 LEDs 0.8W ww IP67 LED light

In stock

SKU: 809950

Price on request

€40.25

€0

Overview

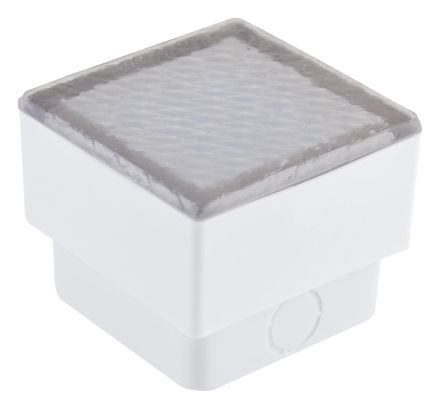

The LED paving stone is ideal for designing driveways and courtyards or flower bed borders, but can of course also be used for numerous other applications. Since the stone can be connected directly to the 230V supply line, there are no additional costs for the ballast. The plastic installation housing supplied is simply inserted into the ground and then the LED stone is inserted into it. The cable can be inserted into the housing from the side or from below.

Property	Value
Nominal voltage:	230 V
With light source:	yes
With operating device:	no
Installation width:	80 mm
Operating device:	not required
Light source:	LED not replaceable
Length:	80 mm
Protection type (IP):	IP67
Protection class:	II
Electrical connection with Plug-in system:	no
Cover material:	structured plastic
Adjustable:	no
Light distribution:	symmetrical
Width:	80 mm
Installation length:	80 mm
Roll-over:	yes
Rated luminous flux according to IEC 62722-2-1:	45 lm
Color temperature:	3000 K
Color rendering index CRI:	70-79
Light color:	white
Max. load:	2500 kg
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in the device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Max. System power:	0.8 W
Height/depth:	40 mm
Installation height/depth:	68 mm
Number of poles:	2
Conductor cross-section:	1 mm²
Connection type:	other
Housing material:	aluminum
Replaceable operating device:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HAB9 LEDs 0.8W white IP67

Manufacturer

HAN230902

GTIN4037293376006

Connection typeOther

Beam angle adjustableNo

Replaceable operating deviceNo

Rated luminous flux according to IEC 62722-2-145lm

Operating deviceNot required

Width80 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width80 mm

Installation height/depth68 mm

Installation length80 mm

Electrical connection with plug-in systemNo

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI70-79

Height/Depth40 mm

IFTTT support availableNo

AdjustableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section1 mm²

LampsLED not replaceable

Light colorWhite

Luminous flux adjustableNo

Light distributionSymmetrical

Length80 mm

Max. load2500 kg

Max. system performance0.8W

With operating deviceNo

With light sourceYes

Nominal voltage230V

Without dimming functionYes

Number of poles2

IP protection)IP67

Protection classII

Voltage typeAC

Cover materialPlastic structured

Housing materialAluminum

RolloverYes
