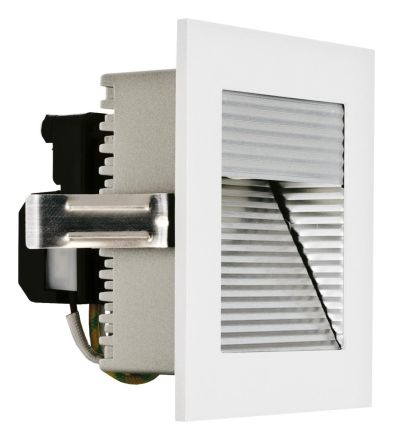

EVN 239401 G9 max. 25W 230V white recessed wall spotlight

EVN 239401 G9 max. 25W 230V white recessed wall spotlight

In stock

SKU: 811411

Number of LM:1

HAB:G9 max. 25W 230V white

Manufacturer:EVN

HAN:239401

GTIN:4037293021746

All specifications

Price on request

€31.74

€0

Into a basketIn the basketGo

Overview

Recessed wall light for a wide range of indoor applications. To avoid glare, the light is fitted with a structured reflector and a structured cover. In addition to the tension springs, the light can also be fixed with two screws, whereby the screw heads are covered by the cover. Bulbs up to a maximum of 25W can be used in the light. When using the optionally available plaster pot, the strain relief on the back must be moved, making sure that the earthing remains connected to the light body.

Property	Value
Number of LM:	1
Length:	90 mm
Width:	90 mm
Height/Depth:	68 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	230 V
Housing color:	white
Housing material:	aluminum
Suitable for ceiling mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	no
Socket:	G9
Connection type:	screw terminal
With operating device:	no
Cover material:	without Cover
Light distributor:	Reflector
Installation height/depth:	65 mm
Without dimming function:	no
Installation width:	71 mm
Light emission:	indirect
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	yes
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for Light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation length:	78 mm
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Suitable for lamp power:	0.1 to 25 W
Number of poles:	3
Surface protection housing:	powder-coated
Replaceable operating device:	no
Dimming DALI-2:	no
Emergency power supply integrated:	no
Constant luminous flux control:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

HABG9 max. 25W 230V white

Manufacturer

HAN239401

GTIN4037293021746

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Replaceable operating deviceNo

Operation via BluetoothNo

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Width90 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width71 mm

Installation height/depth65 mm

Installation length78 mm

VersionG9

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for lamp power0.1 to 25W

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Height/Depth68 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Light emissionIndirect

Light distributorReflector

Length90 mm

With operating deviceNo

With motion detectorNo

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage230V

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionNo

Number of poles3

IP protection)IP20

Protection classI

Voltage typeAC

Cover materialWithout cover

Housing materialAluminum
