EVN 545239 Alu 230V ground spike GU10 max. 35W IP54 garden spotlight

EVN 545239 Alu 230V ground spike GU10 max. 35W IP54 garden spotlight

In stock

SKU: 809921

Price on request

€37.87

€0

Overview

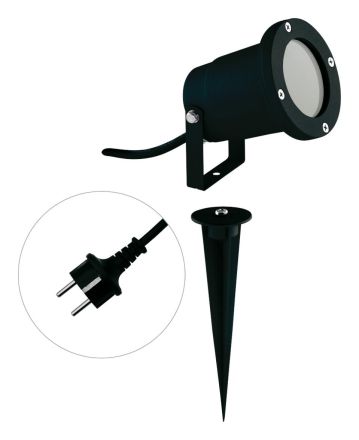

The light can be mounted either directly on the surface using the bracket or optionally in soft ground using the supplied ground spike. The spotlight has a 1.5m long connection cable with a safety plug. The cable is fed into the light using a cable gland. The light can be fitted with a wide range of light sources. The light has a length of 155mm with the mounting bracket when not swivelled, the supplied ground spike has a length of 165mm and the swivel angle is 110°.

Property	Value
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP54
Outer diameter:	91 mm
Socket:	GU10
Protection class:	I
With light source:	no
With operating device:	no
Suitable for recessed mounting:	no
Length:	102 mm
With motion detector:	no
Suitable for wall mounting:	yes
Nominal voltage:	220 to 240 V
Suitable for ceiling mounting:	yes
Suitable for lamp power:	0.1 to 35 W
Operating device:	not required
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	without
Suitable for number of light sources:	1
Material of the cover:	transparent glass
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Suitable for track mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	yes
Suitable for traverse mounting:	no
With Light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Number of poles:	3
Conductor cross-section:	1 mm²
Connection type:	other
Suitable for computer workstations according to EN 12464-1:	no
Replaceable operating device:	no
Dimming DALI-2:	no
Constant luminous flux control:	no
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABAlu 230V ground spike GU10 max. 35W IP54

Manufacturer

HAN545239

GTIN4037293012249

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Replaceable operating deviceNo

Outer diameter91 mm

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

VersionGU10

Suitable for number of light sources1

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power0.1 to 35 W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorBlack

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section1 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Light emissionDirect

Length102 mm

With operating deviceNo

With motion detectorNo

With light sourceNo

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionNo

Number of poles3

ReflectorWithout

IP protection)IP54

Protection classI

Voltage typeAC

AdjustabilityRotatable and pivotable

Cover materialGlass transparent

Housing materialAluminum
