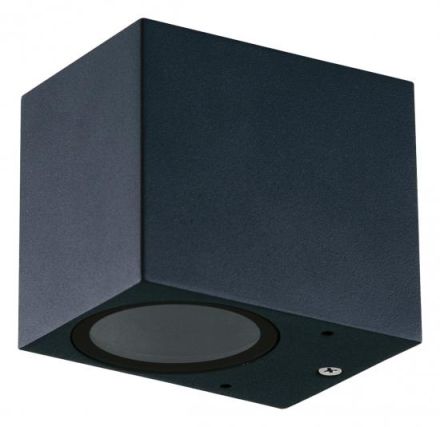

EVN 637115 IP44 GU10 max. 11W 1-flame anthracite recessed wall spotlight

EVN 637115 IP44 GU10 max. 11W 1-flame anthracite recessed wall spotlight

In stock

SKU: 811414

Price on request

€47.08

€0

Overview

The light for indoor use is manufactured in one piece using a die-casting process. This light can also be used in protected outdoor areas. Due to its design, however, the light can only be used as a downlight. A wide variety of light sources can be used in the light, but only light sources up to a maximum of 11W can be used.

Property	Value
Number of LM:	1
Length:	80 mm
Width:	68 mm
Height/Depth:	93 mm
Protection rating (IP):	IP44
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing colour:	anthracite
Housing material:	aluminum
Suitable for ceiling mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	no
Socket:	GU10
Connection type:	screw terminal
With operating device:	no
Cover material:	transparent glass
Without Dimming function:	no
Light emission:	direct
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Cover of the luminaire with Thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Suitable for Lamp power:	0.1 to 11 W
Number of poles:	3
Surface protection housing:	powder-coated
Replaceable operating device:	no
DALI-2 dimming:	no
Integrated emergency power supply:	no
Constant luminous flux control:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

HABIP44 GU10 max. 11W 1-bulb anthracite

Manufacturer

HAN637115

GTIN4037293017886

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Replaceable operating deviceNo

Operation via BluetoothNo

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Width68 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

VersionGU10

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power0.1 to 11W

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorAnthracite

Height/Depth93 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Light emissionDirect

Length80 mm

With operating deviceNo

With motion detectorNo

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionNo

Number of poles3

IP protection)IP44

Protection classI

Voltage typeAC

Cover materialGlass transparent

Housing materialAluminum
