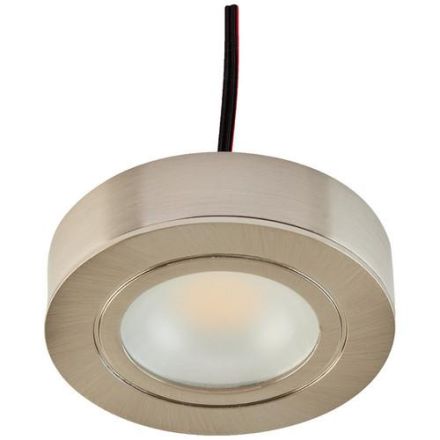

EVN 89013 satin chrome 3W 350mA IP20 warm white LED furniture recessed spotlight

EVN 89013 satin chrome 3W 350mA IP20 warm white LED furniture recessed spotlight

In stock

SKU: 810425

HAB:Chrome satin 3W 350mA IP20 warm white

Manufacturer:EVN

HAN:89013

GTIN:4037293011112

Covering the luminaire with thermal insulation material possible:No

All specifications

Price on request

€31.74

€0

Into a basketIn the basketGo

Overview

The light can be installed as a recessed or surface-mounted light thanks to the attachment housing included in the delivery. Since it also has the MM marking, the light can be used for countless indoor applications. The light has a 2m long connection cable with free wire ends. Since it is a constant current light, several lights must of course be connected in series. The housing color is satin chrome.

Property	Value
System power:	3 W
Luminous flux:	200 lm
Height/depth:	14 mm
Protection rating (IP):	IP20
Protection class:	III
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Housing color:	Chrome
Housing material:	Aluminum
Color temperature:	3000 K
Suitable for ceiling mounting:	yes
Outer diameter:	65 mm
With motion detector:	no
Beam angle:	medium beam 21-40°
With light source:	yes
Light source:	LED not replaceable
Connection type:	other
With operating device:	no
Cover material:	opal plastic
Installation height/depth:	15 mm
Without Dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for Surface mounting:	yes
Suitable for emergency lighting:	no
Installation diameter:	55 mm
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Luminous efficacy:	66 lm/W
Number of poles:	2
Nominal current:	350 mA
Replaceable operating device:	yes
Dimming DALI-2:	no
Integrated emergency power supply:	no
Constant luminous flux control:	no
Luminous intensity:	75 cd
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABChrome satin 3W 350mA IP20 warm white

Manufacturer

HAN89013

GTIN4037293011112

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter65 mm

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter55 mm

Installation height/depth15 mm

Color temperature3000K

Color temperature adjustableNo

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorChrome

Height/Depth14 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy66lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux200lm

Luminous flux adjustableNo

Light intensity75 cd

Light distributionSymmetrical

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Rated current350mA

Emergency power supply integratedNo

Without dimming functionNo

Number of poles2

IP protection)IP20

Protection classIII

System performance3W

Cover materialPlastic opal

Housing materialAluminum
