EVN AD27251425 25W ma. 2900lm silver 3000-5700K LED ceiling lights LB21

EVN AD27251425 25W ma. 2900lm silver 3000-5700K LED ceiling lights LB21

In stock

SKU: 832857

Price on request

€144.37

€0

Overview

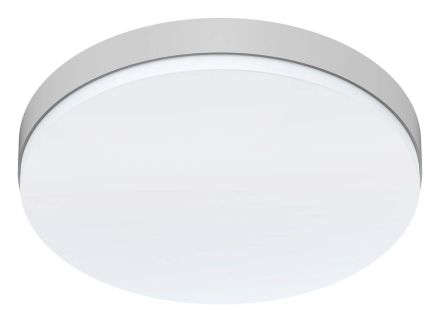

LED surface-mounted panel for various indoor and outdoor applications. The panel can be mounted on ceilings as well as walls. The large-area light output always ensures very homogeneous illumination of the room. The switch on the back can be used to set one of three possible color temperatures. The possible color temperatures and resulting lumens are: 3000K (2350lm), 4000K (2900lm), 5700K (2700lm). The housing color corresponds to RAL9006. Protocol: DT6, DALI. Switching cycles: 100,000.

Property	Value
System power:	25 W
Height/depth:	65 mm
Protection rating (IP):	IP54
Protection class:	II
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	200 to 240 V
Housing color:	Silver
Housing material:	Plastic
Color temperature:	3000 to 5700 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Outer diameter:	275 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam>80°
With light source:	yes
Light source:	LED not replaceable
Temperature:	-20 to 45 °C
Connection type:	Plug-in terminal
With control gear:	yes
Cover material:	Plastic opal
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Control gear:	LED control gear current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Type of wiring:	suitable for through wiring
Number of poles:	5
Replaceable operating device:	no
Dimming DALI-2:	no
Luminous flux maintenance at Average service life 50,000 hours at 25 °C ambient temperature:	20 %
Integrated emergency power supply:	no
Constant luminous flux control:	no
Adjustable color temperature:	levels
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HAB25W max. 2900lm silver 3000-5700K

Manufacturer

HANAD27251425

GTIN4037293033015

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter275 mm

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000 to 5700 K

Color temperature adjustableStages

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorSilver

Height/Depth65 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.20 %

Light distributionSymmetrical

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage200 to 240 V

Emergency power supply integratedNo

Without dimming functionNo

Number of poles5

Impact resistanceIK08

IP protection)IP54

Protection classII

Voltage typeAC

System performance25W

Temperature-20 to 45 °C

Cover materialPlastic opal

Housing materialPlastic
