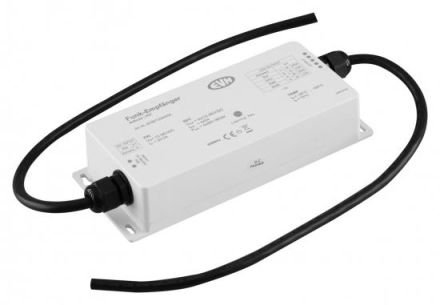

EVN EFD6712244X5A 12-36V/DC max. 240-720W for 868MHz transmitter radio receiver LB21

In stock
SKU: 832858
€162.43
Into a basketIn the basketGo

Overview

The LED multicolor receiver can be used for unicolor, tunable white, RGB and RGBW lights. Due to the protection class, the receiver can also be used outdoors. Suitable for lights with an operating voltage of 12, 24 and 36V/DC. The actual input voltage to be used depends on the voltage required by the connected lights. 1x input, as well as 1x output for 12-36V/DC and 5x output (RGBW+). The primary and secondary cables each have a length of 40cm. Technical data: ta: -20°C - 50°C, tc: 75°C, max. output power per channel: 5A (60W at 12V/DC, 120W at 24V/DC and 180W at 36V/DC). The control is via radio transmitter with 868MHz.

PropertyValue
Number of color channels:4
Type of control:RF
Construction:yes
Version:dynamic
Input voltage:12 to 48 V
Output voltage:12 to 48 V
Length:210 mm
Width:74 mm
Height:38 mm
Protection class (IP):IP67
DIN rail mounting:no
Built-in:yes
Suitable for outdoor use:yes
Housing:Plastic housing
Max. Output current:5 A
Programmable:yes
Protection class:III
Compatible with Apple HomeKit:no
Compatible with Google Assistant:no
Compatible with Amazon Alexa:no
IFTTT support available:no

Characteristics

Input voltage12 to 48 V
HAB12-36V/DC max. 240-720W for 868MHz transmitter
ManufacturerEVN
HANEFD6712244X5A
GTIN4037293023122
VersionDynamic
Output voltage12 to 48 V
Width74 mm
Suitable for outdoor useYes
HousingPlastic housing
Height38 mm
IFTTT support availableNo
Compatible with Amazon AlexaNo
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Length210 mm
IP protection)IP67
Protection classIII
