EVN P65240999 silver IP65 9W 24V/DC RGB LED spotlight

EVN P65240999 silver IP65 9W 24V/DC RGB LED spotlight

In stock

SKU: 810768

Price on request

€107.15

€0

Overview

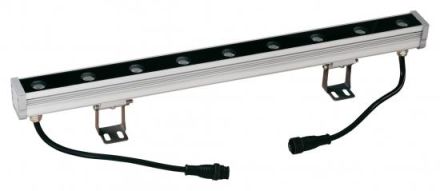

The RGB LED wallwasher can be used not only for numerous outdoor applications, but also indoors. It is mounted using the brackets included in the delivery. These allow a swivel range of 225°. The specified height includes the bracket and is measured when not swiveled. To avoid condensation, the wallwasher has a self-venting vent valve. On both sides of the wallwasher there is a 20cm long connection cable with a plug or socket, which means that several wallwashers (max. 12) can be connected to one another and thus operated using just one operating device and one controller. This means that all wallwashers can be controlled synchronously. The supply cable for connecting to the power supply is available separately, in lengths of 10m (P65ASL1000RGB) or 3m (P65ASL300RGB). A 1m long connection cable is also available separately (P65VBL100RGB). The specified lumens are achieved at full power of all colors. ta: -20°C - 45°C.

Property	Value
System power:	9 W
Housing color:	aluminum
Housing material:	aluminum
Protection class (IP):	IP65
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
With operating device:	no
Suitable for recessed mounting:	no
Length:	513 mm
Width:	38 mm
Height/Depth:	83 mm
With motion detector:	no
Suitable for wall mounting:	yes
Nominal voltage:	24 V
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device voltage controlled
Beam angle:	medium beam 21-40°
Impact resistance:	IK05
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Luminous flux:	443 lm
Cover material:	transparent glass
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	DC
Light color:	RGB
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for Clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	yes
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface protection:	other
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming Phase control:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Zigbee dimming:	no
Push-button dimming:	no
Without dimming function:	no
Light distributor:	Focus lens
Light emission:	direct
Wiring type:	with Through wiring
Number of poles:	4
Conductor cross-section:	0.75 mm²
Connection type:	other
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable operating device:	no
DALI-2 dimming:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable beam angle:	no
Emergency power supply integrated:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABSilver IP65 9W 24V/DC RGB

Manufacturer

HANP65240999

GTIN4037293004220

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringWith through wiring

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceNo

Operating deviceLED control gear voltage controlled

Suitable for computer workstations according to EN 12464-1No

Width38 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature adjustableNo

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorAluminum

Height/Depth83 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section0.75 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

LampsLED not replaceable

Light emissionDirect

Light colorRGB

Luminous flux443lm

Light distributorFocus lens

Light distributionSymmetrical

Length513 mm

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage24V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionOther

Without dimming functionNo

Number of poles4

Impact resistanceIK05

IP protection)IP65

Protection classIII

Voltage typeDC

System performance9W

AdjustabilitySwiveling

Cover materialGlass transparent

Housing materialAluminum
