EVN P68123502 Mini ground spike/tripod 3.5W IP68 edel. ww LED garden spotlight

EVN P68123502 Mini ground spike/tripod 3.5W IP68 edel. ww LED garden spotlight

In stock

SKU: 809920

Price on request

€97.43

€0

Overview

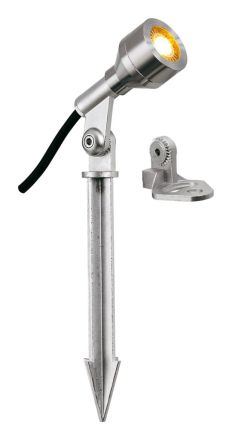

The massive LED spotlight can be used for a wide range of applications. Since the scope of delivery includes both a tripod (mounting base) and a ground spike, the spotlight can be mounted almost anywhere. Due to the protection class, it can even be used underwater up to a depth of 1.5m. The 5m long connecting cable is equipped with a plug for the IP44 plug system. This means that even larger systems can be installed quickly and easily. Both the ground spike and the tripod are provided with a fine toothed grid to prevent the spotlight from swiveling unintentionally. The swivel angle is 60°. If necessary, the LED bulb supplied can of course be replaced at any time.

Property	Value
System power:	3.5 W
Housing color:	Stainless steel
Housing material:	Stainless steel
Protection class (IP):	IP68
Outer diameter:	41 mm
Socket:	GZ4
Light source:	LED replaceable
Protection class:	III
With light source:	yes
With Operating device:	no
Suitable for recessed mounting:	no
Length:	86 mm
With motion detector:	no
Suitable for wall mounting:	yes
Color temperature:	3000 K
Nominal voltage:	12 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Suitable for lamp power:	0.1 to 3.5 W
Operating device:	LED operating device voltage controlled
Beam angle:	medium beam 21-40°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Suitable for number of light sources:	1
Luminous flux:	220 lm
Cover material:	transparent glass
Luminaire cover with thermal insulation material possible:	no
Voltage type:	DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	yes
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for Surface mounting:	yes
Suitable for cable system:	no
Surface protection:	untreated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	no
Light distributor:	Reflector
Light emission:	direct
Luminous intensity:	1028 cd
Number of poles:	2
Conductor cross-section:	0.75 mm²
Connection type:	other
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable operating device:	no
Dimming DALI-2:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABMini ground spike/tripod 3.5W IP68 noble. ww

Manufacturer

HANP68123502

GTIN4037293011693

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter41 mm

Operating deviceLED control gear voltage controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionGZ4

Suitable for number of light sources1

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power0.1 to 3.5W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorStainless steel

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section0.75 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

LampsLED replaceable

Light emissionDirect

Light colorWhite

Luminous flux220lm

Luminous flux adjustableNo

Light intensity1028 cd

Light distributorReflector

Light distributionSymmetrical

Length86 mm

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage12V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionUntreated

Without dimming functionNo

Number of poles2

IP protection)IP68

Protection classIII

Voltage typeDC

System performance3.5W

AdjustabilitySwiveling

Cover materialGlass transparent

Housing materialStainless steel
