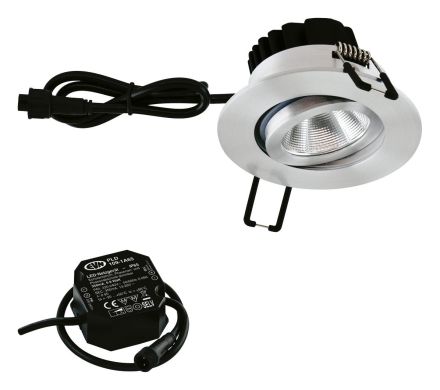

EVN PC650N61402 Round 220 240V 6W 3000K 620lm polished aluminum LED recessed ceiling spotlight LB21

EVN PC650N61402 Round 220 240V 6W 3000K 620lm polished aluminum LED recessed ceiling spotlight LB21

In stock

SKU: 832834

Price on request

€64.46

€0

Overview

LED recessed spotlight, for use in bathrooms, swivels up to 20°, beam angle: 38°, dimmable with leading or trailing edge dimmer, color rendering Ra: >90, housing: aluminum with tempered glass pane, high-gloss aluminum facet reflector, external operating device included, service life: approx. 35,000 hours (L80/B10), MM mark, protection class II Q IP65 (silicone sleeve between head and frame)

Property	Value
System power:	6 W
Housing color:	Aluminium
Housing material:	Aluminium
Protection class (IP):	IP65
Outer diameter:	83 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	45 mm
With Operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	48.5 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	90-100
Suitable for Ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Beam angle:	medium beam 21-40°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high-gloss
Luminous flux:	620 lm
Cover material:	transparent glass
Luminaire cover with thermal insulation material possible:	no
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for Cable system:	no
Surface protection:	other
Brushed surface:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	yes
Dimming leading edge:	yes
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light distributor:	reflector
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-20 to 40 °C
Luminous intensity:	1811 cd
Number of poles:	2
Connection type:	other
Luminous efficacy:	103 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Color consistency (McAdam ellipse):	SDCM3
Replaceable control gear:	yes
DALI-2 dimming:	no
Luminous flux maintenance at average. Service life 50,000 h at 25 °C ambient temperature:	20 %
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Installation diameter:	68 mm
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABRound 220 240V 6W 3000K 620lm polished aluminium

Manufacturer

HANPC650N61402

GTIN4037293018555

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter83 mm

Rated ambient temperature according to IEC 62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeYes

Dimming phase controlYes

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter68 mm

Installation height/depth45 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI90-100

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorAluminum

Height/Depth48.5 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy103lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux620lm

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.20 %

Light intensity1811 cd

Light distributorReflector

Light distributionSymmetrical

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceYes

Surface protectionOther

Without dimming functionNo

Number of poles2

ReflectorHigh gloss

IP protection)IP65

Protection classII

System performance6W

AdjustabilitySwiveling

Cover materialGlass transparent

Housing materialAluminum

EVN PC650N61402 Round 220 240V 6W 3000K 620lm polished aluminum LED recessed ceiling spotlight LB21

Price on request

€64.46

€0
