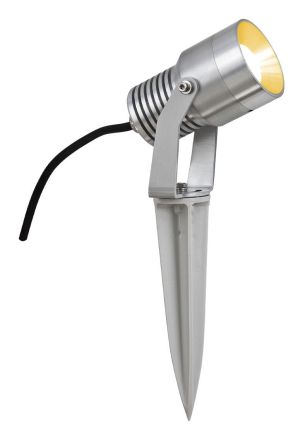

EVN PC670502 ground spike db/sb 5W 24V IP68 warm white LED garden spotlight

EVN PC670502 ground spike db/sb 5W 24V IP68 warm white LED garden spotlight

In stock

SKU: 810419

Price on request

€80.45

€0

Overview

The light can be mounted either directly on the surface using the bracket or optionally in soft ground using the supplied ground spike. The spotlight has a 3m long connection cable with a plug for the IP44 plug-in system. The cable is fed into the light using a cable gland. Thanks to the preparation for the plug-in system, even larger systems can be installed quickly and easily. With the ground spike mounted, the light has a rotation range of 90°. The swivel angle of the light is 45°. The ground spike is 170mm long.

Property	Value
System power:	5 W
Housing color:	Aluminum
Housing material:	Aluminum
Protection class (IP):	IP67
Outer diameter:	62 mm
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
With operating device:	no
Suitable for Recessed mounting:	no
Length:	117 mm
Width:	85 mm
Height/depth:	110 mm
With motion detector:	no
Suitable for wall mounting:	yes
Color temperature:	3000 K
Nominal voltage:	24 V
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device voltage controlled
Beam angle:	medium beam 21-40°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high gloss
Luminous flux:	300 lm
Cover material:	transparent glass
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	DC
Light color:	white
Suitable for Busbar mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	yes
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	yes
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface protection:	untreated
Surface brushed:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light distributor:	reflector
Light emission:	direct
Number of poles:	2
Conductor cross-section:	0.75 mm²
Connection type:	other
Luminous efficacy:	60 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable operating device:	no
Dimming DALI-2:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABGround spike db/sb 5W 24V IP68 warm white

Manufacturer

HANPC670502

GTIN4037293013284

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter62 mm

Operating deviceLED control gear voltage controlled

Suitable for computer workstations according to EN 12464-1No

Width85 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color temperature adjustableNo

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingYes

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorAluminum

Height/Depth110 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section0.75 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy60lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux300lm

Light distributorReflector

Light distributionSymmetrical

Length117 mm

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage24V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionUntreated

Without dimming functionNo

Number of poles2

ReflectorHigh gloss

IP protection)IP67

Protection classIII

Voltage typeDC

System performance5W

AdjustabilityRotatable and pivotable

Cover materialGlass transparent

Housing materialAluminum
