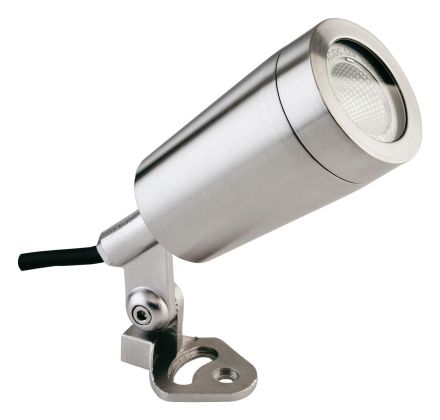

EVN PC680601 ground spike/tripod 7W IP68 stainless steel kw LED garden spotlight

EVN PC680601 ground spike/tripod 7W IP68 stainless steel kw LED garden spotlight

In stock

SKU: 810416

Price on request

€111.11

€0

Overview

The massive LED spotlight can be used for a wide range of applications. Since the scope of delivery includes both a tripod (mounting base) and a ground spike, the spotlight can be mounted almost anywhere. Due to the protection class, it can even be used underwater up to a depth of 1.5m. The 5m long connecting cable is equipped with a plug for the IP44 plug system. This means that even larger systems can be installed quickly and easily. Both the ground spike and the tripod are provided with a fine toothed grid to prevent the spotlight from swiveling unintentionally. The swivel angle is 60°.

Property	Value
System power:	6 W
Housing color:	Stainless steel
Housing material:	Stainless steel
Protection class (IP):	IP68
Outer diameter:	56 mm
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
With operating device:	no
Suitable for Recessed mounting:	no
Length:	144 mm
With motion detector:	no
Suitable for wall mounting:	yes
Color temperature:	5000 K
Nominal voltage:	12 V
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device voltage controlled
Beam angle:	medium beam 21-40°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high-gloss
Luminous flux:	426 lm
Cover material:	transparent glass
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC/DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for Pendulum suspension:	no
Suitable for platform/floor mounting:	yes
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface protection:	untreated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Number of poles:	2
Conductor cross-section:	0.75 mm²
Connection type:	other
Luminous efficacy:	71 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable control gear:	no
DALI-2 dimming:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Emergency power supply integrated:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABGround spike/tripod 7W IP68 stainless steel kw

Manufacturer

HANPC680601

GTIN4037293011686

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter56 mm

Operating deviceLED control gear voltage controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature5000K

Color temperature adjustableNo

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorStainless steel

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section0.75 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy71lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux426lm

Luminous flux adjustableNo

Light distributorReflector

Light distributionSymmetrical

Length144 mm

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage12V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionUntreated

Without dimming functionYes

Number of poles2

ReflectorHigh gloss

IP protection)IP68

Protection classIII

Voltage typeAC/DC

System performance6W

AdjustabilitySwiveling

Cover materialGlass transparent

Housing materialStainless steel
