EVN PLC65151502 1.8m connection box IP65 15W 3000K 934lm LED garden spotlight LB20

EVN PLC65151502 1.8m connection box IP65 15W 3000K 934lm LED garden spotlight LB20

In stock

SKU: 810939

Price on request

€166.53

€0

Overview

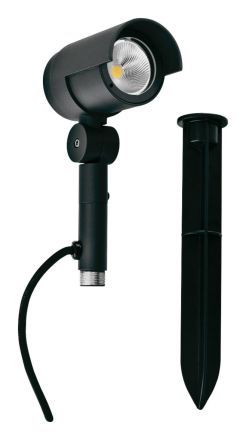

The LED garden spotlight, which is equipped with a high-voltage LED chip, is mounted directly in the soft ground using the ground spike provided. The spotlight has a 1.8m long connecting cable with a connection box. The light can be swiveled +/- 100° and rotated 340°. The ground spike is 250mm long.

Property	Value
System power:	15 W
Housing color:	anthracite
Housing material:	aluminum
Protection class (IP):	IP65
Outer diameter:	75 mm
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	no
Suitable for Recessed mounting:	no
Length:	118 mm
Height/depth:	227 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Nominal voltage:	200 to 240 V
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	not required
Beam angle:	wide beam 41-80°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high-gloss
Luminous flux:	934 lm
Cover material:	transparent glass
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	yes
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming Phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Light distributor:	reflector
Light emission:	direct
Number of poles:	3
Conductor cross-section:	0.75 mm²
Connection type:	screw terminal
Luminous efficacy:	62 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable operating device:	no
Dimming DALI-2:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HAB1.8m connection box IP65 15W 3000K 934lm

Manufacturer

HANPLC65151502

GTIN4037293014625

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Beam angleWide beam 41-80°

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter75 mm

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color temperature adjustableNo

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorAnthracite

Height/Depth227 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section0.75 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy62lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux934lm

Luminous flux adjustableNo

Light distributorReflector

Light distributionSymmetrical

Length118 mm

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage200 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Number of poles3

ReflectorHigh gloss

IP protection)IP65

Protection classI

Voltage typeAC

System performance15W

AdjustabilityRotatable and pivotable

Cover materialGlass transparent

Housing materialAluminum

EVN PLC65151502 1.8m connection box IP65 15W 3000K 934lm LED garden spotlight LB20

Price on request

€166.53

€0
