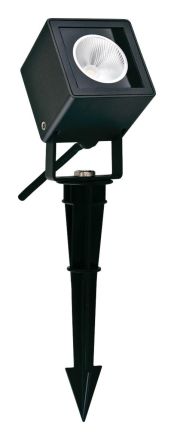

EVN PLCQ65091502 1.8m connection box IP65 9W 3000K 512lm LED garden spotlight

EVN PLCQ65091502 1.8m connection box IP65 9W 3000K 512lm LED garden spotlight

In stock

SKU: 810940

Price on request

€151.89

€0

Overview

The light can be mounted either directly on the surface using the bracket or optionally in soft ground using the supplied ground spike. The spotlight has a 1.8m long connection cable with connection box. The light can be swivelled +5°/-90°. The ground spike is 215mm long and the head is 75mm deep.

Property	Value
System power:	9 W
Housing color:	anthracite
Housing material:	aluminum
Protection class (IP):	IP65
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	81 mm
Width:	81 mm
Height/Depth:	117 mm
With motion detector:	no
Suitable for wall mounting:	yes
Color temperature:	3000 K
Nominal voltage:	200 to 240 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Beam angle:	medium beam 21-40°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high-gloss
Luminous flux:	512 lm
Cover material:	transparent glass
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for Busbar mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	yes
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface protection:	powder-coated
Surface brushed:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Light distributor:	reflector
Light emission:	direct
Number of poles:	3
Conductor cross-section:	0.75 mm²
Connection type:	screw terminal
Luminous efficacy:	56 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable operating device:	no
Dimming DALI-2:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HAB1.8m connection box IP65 9W 3000K 512lm

Manufacturer

HANPLCQ65091502

GTIN4037293014687

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width81 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorAnthracite

Height/Depth117 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section0.75 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy56lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux512lm

Luminous flux adjustableNo

Light distributorReflector

Light distributionSymmetrical

Length81 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage200 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Number of poles3

ReflectorHigh gloss

IP protection)IP65

Protection classI

Voltage typeAC

System performance9W

AdjustabilityRotatable and pivotable

Cover materialGlass transparent

Housing materialAluminum
