EVN TVB6724149902 IP67 24V 330lm/m 96LED/m RGBW L:6.25cm LED strip light

In stock
SKU: 832875
€9.21
Into a basketIn the basketGo

Overview

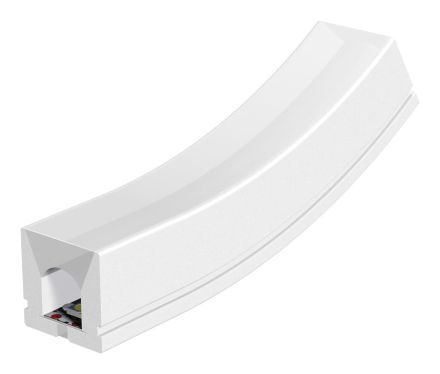

The Neon-Flex LED strip can be made to any length (specify the segments required), taking into account the pitch of 62.5 mm. The maximum feed-in length is 5 m for one-sided feed-in, or 10 m for two-sided feed-in. The pre-assembled strip is delivered as standard with a 0.5 m long connection cable (5 x 0.50 mm) with free wire ends on one side. As this is a side-view Neon-Flex strip, the LED strip is attached to the side, which means that the Neon-Flex strip can be bent to the left and right as desired (note the bending radius). The strip is also UV, chlorine, salt water and solvent resistant (not sea water resistant). The use of an aluminum profile is optional, but not absolutely necessary. The luminous efficacy is RGB: 190lm per meter, white (3000K): 140lm per meter. Average nominal lifespan: L70B10 at 50,000h.

PropertyValue
Voltage type:DC
Lamp power per meter:14 W
Width:20 mm
Beam angle:120 °
Color temperature:3000 K
Protection class (IP):IP67
Luminous flux per meter:330 lm
Protection class:III
Height/depth:20 mm
With Connection set:yes
Length of the individual sections:62.5 mm
Number of lamps per meter:96
Smallest bending radius:100 mm
Design:Hose
With end piece:yes
Lamp:LED not replaceable
Self-adhesive:no
Mounting type:Surface/installation
Lamp voltage:24 V
Operating device:LED operating device voltage controlled
Light colour:RGBW
With protective cover:no
Number of poles:5
Suitable for dimmer:yes
Replaceable operating device:no
Luminous flux maintenance at average. Service life 50,000 h at 25 °C ambient temperature:30 %
Constant luminous flux control:no
Color temperature adjustable:no
Beam angle adjustable:no
Compatible with Apple HomeKit:no
Compatible with Google Assistant:no
Compatible with Amazon Alexa:no
IFTTT support available:no

Characteristics

With end pieceYes
With connection setYes
Suitable for dimmersYes
HABIP67 24V 330lm/m 96LED/m RGBW L:6.25cm
ManufacturerEVN
HANTVB6724149902
GTIN4037293025683
Number of lamps per meter96
VersionHose
Beam angle120°
Beam angle adjustableNo
Replaceable operating deviceNo
Operating deviceLED control gear voltage controlled
Width20 mm
Color temperature3000K
Color temperature adjustableNo
Height/Depth20 mm
IFTTT support availableNo
Smallest bending radius100 mm
Compatible with Amazon AlexaNo
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Constant luminous flux controlNo
Lamp power per meter14W
Lamp voltage24V
LampsLED not replaceable
Light colorRGBW
Luminous flux per meter330lm
Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.30 %
Length of each section62.5 mm
With protective coverNo
Mounting typeConstruction/Installation
Number of poles5
IP protection)IP67
Protection classIII
Self-adhesiveNo
Voltage typeDC
