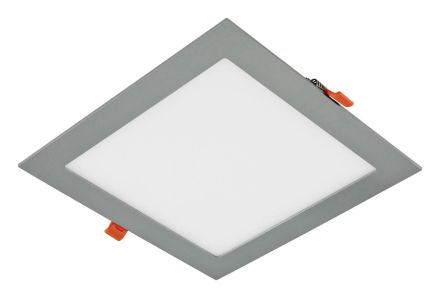

EVN LPQ223502 quad 21W 350mA Geh Silver IP20 ww LED recessed panel

EVN LPQ223502 quad 21W 350mA Geh Silver IP20 ww LED recessed panel

In stock

SKU: 809825

HAB:Quad 21W 350mA Geh Silver IP20 ww

Manufacturer:EVN

HAN:LPQ223502

GTIN:4037293402613

Covering the luminaire with thermal insulation material possible:No

All specifications

Price on request

€75.53

€0

Into a basketIn the basketGo

Overview

Housing silver, 225 x 225 mm, 25 mm deep, cutout 202 x 202 mm, installation depth 25 mm, protection class III, IP 20, with LM, without power supply and dimmer,

Property	Value
System power:	21 W
Luminous flux:	1736 lm
Length:	225 mm
Width:	225 mm
Height/depth:	25 mm
Protection rating (IP):	IP20
Protection class:	III
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Housing color:	silver
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
With motion detector:	no
Beam angle:	extremely wide beam>80°
With Light source:	yes
Light source:	LED not replaceable
Temperature:	-10 to 50 °C
Connection type:	other
With control gear:	no
Cover material:	opal plastic
Installation height/depth:	25 mm
Without dimming function:	no
Installation width:	205 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for Surface mounting:	no
Suitable for emergency lighting:	yes
Installation length:	205 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Luminaire luminous efficacy:	82 lm/W
Number of poles:	2
Surface protection housing:	powder-coated
Nominal current:	350 mA
Replaceable operating device:	no
Dimming DALI-2:	no
Emergency power supply integrated:	no
Constant luminous flux control:	no
Luminous intensity:	553 cd
Color temperature adjustable:	no
Beam angle adjustable:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABQuad 21W 350mA Geh Silver IP20 ww

Manufacturer

HANLPQ223502

GTIN4037293402613

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Execution of the gridWithout

Beam angle adjustableNo

Replaceable operating deviceNo

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width225 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width205 mm

Installation height/depth25 mm

Installation length205 mm

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Housing colorSilver

Height/Depth25 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy82lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1736 lm

Light intensity553 cd

Light distributionSymmetrical

Length225 mm

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Rated current350mA

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionNo

Number of poles2

Impact resistanceIK03

IP protection)IP20

Protection classIII

System performance21 W

Temperature-10 to 50 °C

Cover materialPlastic opal

Housing materialAluminum
