EVN 080011 round chrome G4 max.20W 12V recessed ceiling spotlight

EVN 080011 round chrome G4 max.20W 12V recessed ceiling spotlight

In stock

SKU: 810279

Price on request

€10.53

€0

Overview

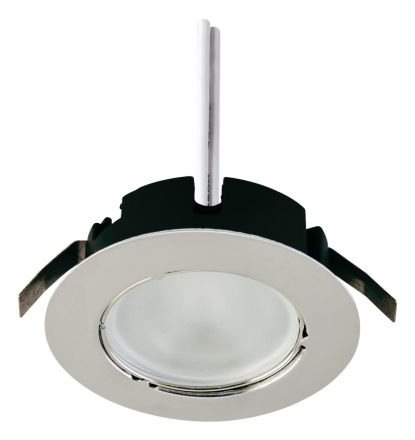

The luminaire is suitable for installation in furniture due to the MM marking, but can also be used as a ceiling light. The housing is made of plastic, the visible side consists of an aluminum cover with a chrome look. The luminaire has a 1.80 m long connection cable, which can optionally be fitted with the included AMP plug.

Property	Value
Housing color:	Chrome
Housing material:	Plastic
Protection class (IP):	IP20
Outer diameter:	70 mm
Socket:	G4
Protection class:	III
With light source:	no
Installation height/depth:	22 mm
With operating device:	no
Suitable for Recessed mounting:	yes
Height/depth:	22 mm
With motion detector:	no
Suitable for wall mounting:	no
Nominal voltage:	12 V
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Suitable for lamp power:	0.1 to 20 W
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	other
Suitable for number of light sources:	1
Cover material:	opal glass
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC/DC
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for Pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	painted
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light distributor:	reflector
Light emission:	direct
Number of poles:	2
Connection type:	other
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable operating device:	no
Dimming DALI-2:	no
Constant luminous flux control:	no
Installation diameter:	60 mm
Emergency power supply integrated:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABRound chrome G4 max.20W 12V

Manufacturer

HAN080011

GTIN4037293800112

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Replaceable operating deviceNo

Outer diameter70 mm

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter60 mm

Installation height/depth22 mm

VersionG4

Suitable for number of light sources1

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power0.1 to 20 W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorChrome

Height/Depth22 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Light emissionDirect

Light distributorReflector

Light distributionSymmetrical

With operating deviceNo

With motion detectorNo

With light sourceNo

With light sensorNo

Nominal voltage12V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPainted

Without dimming functionNo

Number of poles2

ReflectorOther

IP protection)IP20

Protection classIII

Voltage typeAC/DC

AdjustabilityNot adjustable

Cover materialGlass opal

Housing materialPlastic
