EVN 356001 round black white GZ4 max.35W 12V recessed ceiling spotlight

EVN 356001 round black white GZ4 max.35W 12V recessed ceiling spotlight

In stock

SKU: 810253

Price on request

€8.42

€0

Overview

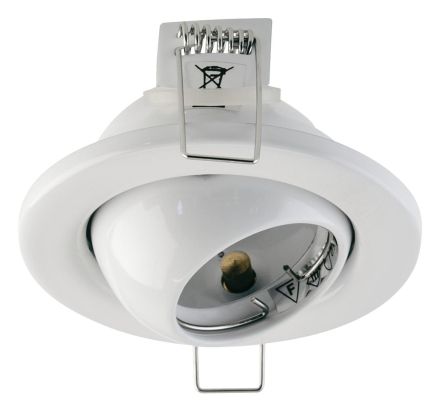

Swivelling recessed ceiling light for a wide range of indoor applications. Effect lighting, room lighting, accent lighting and much more can be implemented with this light. The low-voltage socket means that different lamps can be used in the light for a wide range of lighting requirements, regardless of whether they are halogen or LED, meaning there are almost no limits to the design options. Several lights can be operated via one control device, which means that different light groups can be switched within a room. The swivel angle of the light is 15°, the rotation range is 355°.

Property	Value
Housing color:	white
Housing material:	steel
Protection class (IP):	IP20
Outer diameter:	80 mm
Socket:	GZ4
Protection class:	III
With light source:	no
Installation height/depth:	40 mm
With operating device:	no
Suitable for Recessed mounting:	yes
Height/depth:	52 mm
With motion detector:	no
Suitable for wall mounting:	no
Nominal voltage:	12 V
Suitable for ceiling mounting:	yes
Suitable for lamp power:	0.1 to 35 W
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	without
Suitable for number of Light sources:	1
Covering the lamp with thermal insulation material possible:	no
Voltage type:	AC/DC
Suitable for track mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for traverse mounting:	no
With Light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Number of poles:	2
Connection type:	other
Suitable for computer workstations according to EN 12464-1:	no
Replaceable operating device:	no
Dimming DALI-2:	no
Constant luminous flux control:	no
Installation diameter:	60 mm
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABRound black white GZ4 max.35W 12V

Manufacturer

HAN356001

GTIN4037293356015

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Replaceable operating deviceNo

Outer diameter80 mm

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter60 mm

Installation height/depth40 mm

VersionGZ4

Suitable for number of light sources1

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power0.1 to 35 W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth52 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Light emissionDirect

With operating deviceNo

With motion detectorNo

With light sourceNo

With light sensorNo

Nominal voltage12V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionNo

Number of poles2

ReflectorWithout

IP protection)IP20

Protection classIII

Voltage typeAC/DC

AdjustabilityRotatable and pivotable

Housing materialSteel
