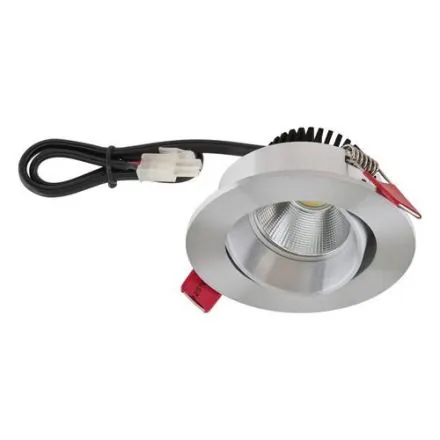

Pivoting recessed ceiling light for a wide range of indoor applications. Effect lighting, room lighting, accent lighting and much more can be implemented with this light. There are no additional costs for lamps with this light, as the power is supplied by a permanently installed LED chip. As the power supply unit is already included in the scope of delivery, there are no additional costs for this either. The system can also be dimmed using trailing edge phase control. The swivel angle of the light is 20°.
| Property | Value |
| System power: | 6 W |
| Housing color: | Aluminium |
| Housing material: | Aluminium |
| Protection class (IP): | IP20 |
| Outer diameter: | 85 mm |
| Light source: | LED replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 50 mm |
| With Operating device: | yes |
| Suitable for built-in installation: | yes |
| Height/depth: | 47 mm |
| With motion detector: | no |
| Suitable for wall mounting: | no |
| Color temperature: | 2700 K |
| Nominal voltage: | 220 to 240 V |
| Color rendering index CRI: | 90-100 |
| Suitable for Ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Beam angle: | medium beam 21-40° |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Reflector: | high-gloss |
| Suitable for number of light sources: | 1 |
| Luminous flux: | 575 lm |
| Luminaire covered with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for Surface mounting: | no |
| Suitable for cable system: | no |
| Surface protection: | other |
| Brushed surface: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | yes |
| Dimming leading edge: | yes |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with Push-button: | no |
| Without dimming function: | no |
| Light distributor: | reflector |
| Light emission: | direct |
| Luminous intensity: | 1680 cd |
| Number of poles: | 2 |
| Connection type: | other |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Replaceable operating device: | yes |
| DALI-2 dimming: | no |
| Luminous flux maintenance at avg. Service life 35,000 h at 25 °C ambient temperature: | 20 % |
| Constant luminous flux control: | no |
| Color temperature adjustable: | no |
| Beam angle adjustable: | no |
| Installation diameter: | 68 mm |
| Integrated emergency power supply: | no |
| IFTTT support available: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
