EVN 569001602 6W 3000K 620lm R sb white LED recessed ceiling spotlight

EVN 569001602 6W 3000K 620lm R sb white LED recessed ceiling spotlight

In stock

SKU: 810844

Price on request

€76.35

€0

Overview

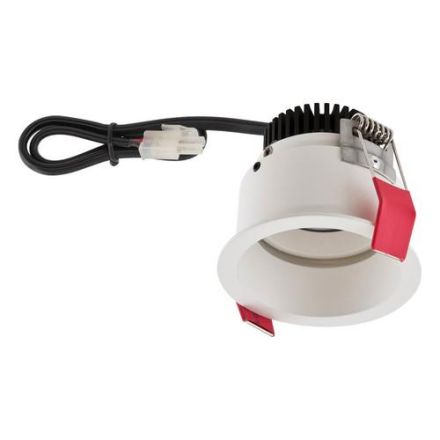

Pivoting recessed ceiling light for a wide range of indoor applications. Effect lighting, room lighting, accent lighting and much more can be implemented with this light. There are no additional costs for lamps with this light, as the power is supplied by a permanently installed LED chip. As the power supply unit is already included in the scope of delivery, there are no additional costs for this either. The system can also be dimmed using trailing edge phase control. The swivel angle of the light is 20°.

Property	Value
System power:	6 W
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	75 mm
Light source:	LED replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	70 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	68 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Beam angle:	medium beam 21-40°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high-gloss
Suitable for number of light sources:	1
Luminous flux:	620 lm
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for Busbar mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Surface brushed:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	yes
Dimming leading edge:	yes
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light distributor:	reflector
Light emission:	direct
Luminous intensity:	1811 cd
Number of poles:	2
Connection type:	other
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable operating device:	yes
DALI-2 dimming:	no
Luminous flux maintenance at avg. Service life 35,000 h at 25 °C ambient temperature:	20 %
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Installation diameter:	68 mm
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HAB6W 3000K 620lm R sb white

Manufacturer

HAN569001602

GTIN4037293009997

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter75 mm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeYes

Dimming phase controlYes

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter68 mm

Installation height/depth70 mm

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI90-100

Suitable for number of light sources1

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth68 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

LampsLED replaceable

Light emissionDirect

Light colorWhite

Luminous flux620lm

Light intensity1811 cd

Light distributorReflector

Light distributionSymmetrical

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionNo

Number of poles2

ReflectorHigh gloss

IP protection)IP20

Protection classII

Voltage typeAC

System performance6W

AdjustabilitySwiveling

Housing materialAluminum
