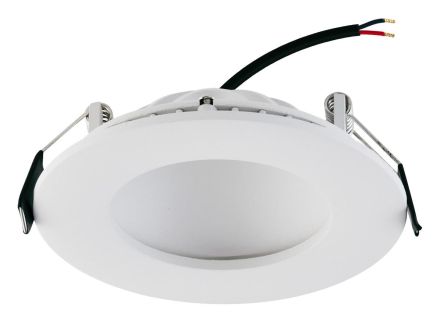

EVN DL10502 white 6W 350mA LED recessed ceiling spotlight

EVN DL10502 white 6W 350mA LED recessed ceiling spotlight

In stock

SKU: 810332

HAB:White 6W 350mA

Manufacturer:EVN

HAN:DL10502

GTIN:4037293402439

Covering the luminaire with thermal insulation material possible:No

All specifications

Price on request

€34.06

€0

Into a basketIn the basketGo

Overview

The LED lights in the DL series are available in four different sizes and power levels, and each in two light colors. Thanks to their special design, the lights in the series blend harmoniously and unobtrusively into the overall appearance of a room, while ensuring very homogeneous illumination without glare. This is made possible by the LEDs attached to the lower edge, which indirectly illuminate the dome before the light finally illuminates the room through the lower opening. Since the lights are operated using constant current, several lights must be connected in series to a power supply unit. The lights are also dimmable, although the type of dimming varies depending on the power supply unit used. The housing color corresponds to RAL9003.

Property	Value
System power:	7 W
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	106 mm
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	38 mm
With Operating device:	no
Suitable for recessed mounting:	yes
Height/depth:	38 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Beam angle:	extreme wide beam>80°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Luminous flux:	342 lm
Covering of the luminaire with thermal insulation material possible:	no
Light colour:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendant suspension:	no
Suitable for Pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
DSI dimming:	no
Potentiometer dimming (integrated in the device):	no
Line switch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Trailing edge dimming:	no
Leading edge dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave dimming Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Reflector
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-20 to 40 °C
Luminous intensity:	109 cd
Number of poles:	2
Connection type:	other
Luminaire luminous efficacy:	48 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable control gear:	no
DALI-2 dimming:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Adjustable beam angle:	no
Installation diameter:	92 mm
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABWhite 6W 350mA

Manufacturer

HANDL10502

GTIN4037293402439

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter106 mm

Rated ambient temperature according to IEC 62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter92 mm

Installation height/depth38 mm

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth38 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy48lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux342lm

Light intensity109 cd

Light distributorReflector

Light distributionSymmetrical

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionNo

Number of poles2

IP protection)IP20

Protection classIII

System performance7W

AdjustabilityNot adjustable

Housing materialAluminum
