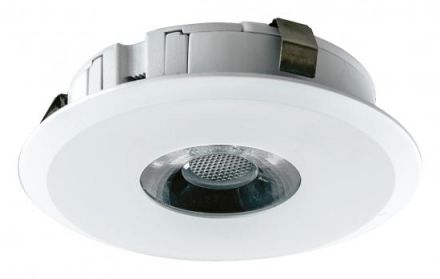

EVN L23030102 3W 285lm 3000K 35° round white LED recessed ceiling spotlight

EVN L23030102 3W 285lm 3000K 35° round white LED recessed ceiling spotlight

In stock

SKU: 811517

HAB:3W 285lm 3000K 35° round white

Manufacturer:EVN

HAN:L23030102

GTIN:4037293016919

Covering the luminaire with thermal insulation material possible:No

All specifications

Price on request

€44.74

€0

Into a basketIn the basketGo

Overview

Recessed ceiling light for a wide range of indoor applications. Effect lighting, accent lighting and much more can be implemented with this light. Thanks to the permanently installed LED chip, there are no additional costs for lamps. In addition, since the complete ballast technology is permanently installed in the light, there are no additional costs for a ballast, as the connection is made directly to the 230V supply line.

Property	Value
System power:	3 W
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	82 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	17 mm
With Operating device:	no
Suitable for recessed mounting:	yes
Height/depth:	20 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	not required
Beam angle:	medium beam 21-40°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	without
Luminous flux:	285 lm
Cover material:	structured plastic
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for Busbar mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Surface brushed:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-25 to 40 °C
Luminous intensity:	980 cd
Type of wiring:	Termination
Number of poles:	3
Connection type:	Screw terminal
Luminous efficacy:	95 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Replaceable Operating device:	no
DALI-2 dimming:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Installation diameter:	68 mm
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HAB3W 285lm 3000K 35° round white

Manufacturer

HANL23030102

GTIN4037293016919

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter82 mm

Rated ambient temperature according to IEC 62722-2-1-25 to 40 °C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter68 mm

Installation height/depth17 mm

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth20 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy95lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux285lm

Light intensity980 cd

Light distributionSymmetrical

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Number of poles3

ReflectorWithout

IP protection)IP20

Protection classII

Voltage typeAC

System performance3W

AdjustabilityNot adjustable

Cover materialPlastic structured

Housing materialAluminum
