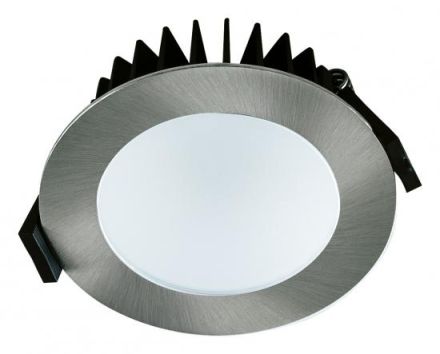

EVN L4408130125 IP44 24V 8W 2700K-6500K 850lm round chrome LED recessed ceiling spotlight

EVN L4408130125 IP44 24V 8W 2700K-6500K 850lm round chrome LED recessed ceiling spotlight

In stock

SKU: 811136

HAB:IP44 24V 8W 2700K-6500K 850lm round chrome

Manufacturer:EVN

HAN:L4408130125

GTIN:4037293020282

Covering the luminaire with thermal insulation material possible:No

All specifications

Price on request

€44.74

€0

Into a basketIn the basketGo

Overview

Tunable-White recessed light for various applications, such as comprehensive but also effective lighting in hallways, living rooms, offices, and much more. The color temperature of the panel can be freely selected in the range of 2700K-6500K using a separately available controller. The housing color is satin chrome.

Property	Value
System power:	8 W
Housing color:	Chrome
Housing material:	Aluminum
Protection class (IP):	IP44
Outer diameter:	103 mm
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	45 mm
With Operating device:	no
Suitable for recessed mounting:	yes
Height/depth:	40 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	2700 to 6500 K
Nominal voltage:	24 V
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, voltage-controlled
Beam angle:	extremely wide beam>80°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Luminous flux:	800 to 850 lm
Cover material:	opal plastic
Luminaire cover with thermal insulation material possible:	no
Voltage type:	DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for Surface mounting:	no
Suitable for cable system:	no
Surface protection:	other
Brushed surface:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	no
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-20 to 40 °C
Number of poles:	3
Connection type:	other
Suitable for computer workstations according to EN 12464-1:	no
Replaceable operating device:	no
Dimming DALI-2:	no
Constant luminous flux control:	no
Color temperature adjustable:	continuously
Beam angle adjustable:	no
Installation diameter:	85 mm
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABIP44 24V 8W 2700K-6500K 850lm round chrome

Manufacturer

HANL4408130125

GTIN4037293020282

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter103 mm

Rated ambient temperature according to IEC 62722-2-1-20 to 40 °C

Operating deviceLED control gear voltage controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter85 mm

Installation height/depth45 mm

Color temperature2700 to 6500 K

Color temperature adjustableContinuously variable

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorChrome

Height/Depth40 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux800 to 850 lm

Light distributionSymmetrical

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage24V

Emergency power supply integratedNo

Brushed surfaceYes

Surface protectionOther

Without dimming functionNo

Number of poles3

IP protection)IP44

Protection classIII

Voltage typeDC

System performance8W

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
