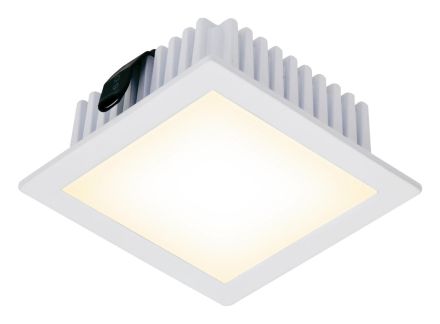

EVN P04450102 quad white 4.5W 360lm 350mA 110° 3000K LED recessed ceiling spotlight

EVN P04450102 quad white 4.5W 360lm 350mA 110° 3000K LED recessed ceiling spotlight

In stock

SKU: 810505

Price on request

€22.98

€0

Overview

Recessed ceiling light for a wide range of indoor applications. Both effect lighting, accent lighting and much more can be implemented with this light. Thanks to the built-in LED chip, there are no additional costs for light sources. Several lights can be operated via one control device, which means that different light groups can be switched within a room. Since the light is operated via 350mA, the lights must be connected in series. The light has a 0.15m long connection cable.

Property	Value
System power:	4.5 W
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	30 mm
With operating device:	no
Suitable for Recessed mounting:	yes
Length:	70 mm
Width:	70 mm
Height/depth:	34 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Beam angle:	extremely wide beam>80°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	without
Installation width:	62 mm
Installation length:	62 mm
Luminous flux:	360 lm
Cover material:	opal plastic
Covering of the luminaire with thermal insulation material possible:	no
Light color:	white
Suitable for Busbar mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Surface brushed:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-10 to 50 °C
Luminous intensity:	134 cd
Number of poles:	2
Connection type:	other
Luminous efficacy:	80 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Replaceable operating device:	no
Dimming DALI-2:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABQuad white 4.5W 360lm 350mA 110° 3000K

Manufacturer

HANP04450102

GTIN4037293403887

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angle adjustableNo

Replaceable operating deviceNo

Rated ambient temperature according to IEC 62722-2-1-10 to 50 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width70 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width62 mm

Installation height/depth30 mm

Installation length62 mm

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth34 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy80lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux360lm

Light intensity134 cd

Light distributionSymmetrical

Length70 mm

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionNo

Number of poles2

ReflectorWithout

IP protection)IP20

Protection classIII

System performance4.5W

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
