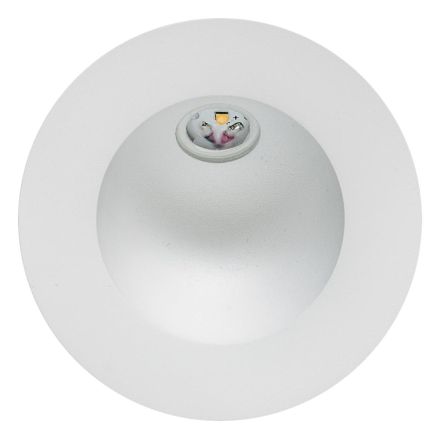

EVN P20301 rigid 2W 700mA round IP54 cold white white LED recessed ceiling spotlight

EVN P20301 rigid 2W 700mA round IP54 cold white white LED recessed ceiling spotlight

In stock

SKU: 809814

Price on request

€39.68

€0

Overview

The LED recessed light is designed so that it can be mounted either in the wall or optionally in switch boxes. The color of the light is RAL9003. Due to its design and performance, the light is perfect as an orientation light. Since the light is operated via 700mA, the lights must be connected in series. The light has a 0.5m long connection cable.

Property	Value
System power:	2 W
Luminous flux:	135 lm
Height/depth:	30 mm
Protection rating (IP):	IP54
Protection class:	III
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Housing color:	white
Housing material:	aluminum
Color temperature:	6000 K
Suitable for ceiling mounting:	no
Outer diameter:	80 mm
With motion detector:	no
Beam angle:	extremely wide beam>80°
With light source:	yes
Light source:	LED not replaceable
Connection type:	other
With operating device:	no
Cover material:	transparent glass
Installation height/depth:	30 mm
Without Dimming function:	no
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for Surface mounting:	no
Suitable for emergency lighting:	no
Installation diameter:	60 mm
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Luminous efficacy:	67.5 lm/W
Number of poles:	2
Surface protection housing:	powder-coated
Nominal current:	700 mA
Replaceable operating device:	no
Dimming DALI-2:	no
Integrated emergency power supply:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABRigid 2W 700mA round IP54 cold white white

Manufacturer

HANP20301

GTIN4037293010573

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter80 mm

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter60 mm

Installation height/depth30 mm

Color temperature6000K

Color temperature adjustableNo

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Height/Depth30 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy67.5lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Luminous flux135lm

Light distributionSymmetrical

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Rated current700mA

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionNo

Number of poles2

IP protection)IP54

Protection classIII

System performance2W

Cover materialGlass transparent

Housing materialAluminum
