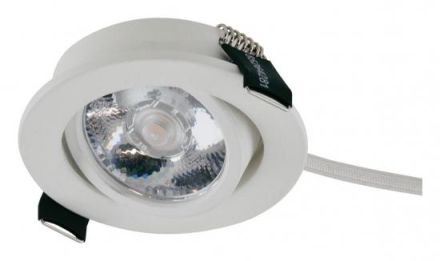

EVN P23030102 3000K 3W 210lm incl. power supply R sb ws LED recessed ceiling spotlight

EVN P23030102 3000K 3W 210lm incl. power supply R sb ws LED recessed ceiling spotlight

In stock

SKU: 810902

Price on request

€38.17

€0

Overview

The LED recessed ceiling light can be used for a wide range of indoor applications. Since it has the MM marking, the light can even be used in furniture construction. There are no additional costs for lamps with this light, as the power is supplied by a permanently installed LED chip. The light is also delivered ready for connection. This means that the power supply unit is already connected to the light via a 15 cm long cable. The power supply unit also has a 15 cm long connection cable on the primary side for connection to the supply line. The swivel angle is 15°.

Property	Value
System power:	3 W
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	64 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	27 mm
With Operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	28 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Nominal voltage:	100 to 240 V
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Beam angle:	extremely narrow beam 5-10°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high-gloss
Luminous flux:	210 lm
Cover material:	transparent glass
Luminaire cover with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for Surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Luminous intensity:	8783 cd
Number of poles:	2
Connection type:	Screw terminal
Luminous efficacy:	70 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable operating device:	yes
Dimming DALI-2:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Installation diameter:	55 mm
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HAB3000K 3W 210lm incl. power supply R sb ws

Manufacturer

HANP23030102

GTIN4037293007207

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Beam angleExtremely narrow beam 5-10°

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter64 mm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter55 mm

Installation height/depth27 mm

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth28 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy70lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux210lm

Light intensity8783 cd

Light distributorReflector

Light distributionSymmetrical

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage100 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Number of poles2

ReflectorHigh gloss

IP protection)IP20

Protection classII

Voltage typeAC

System performance3W

AdjustabilitySwiveling

Cover materialGlass transparent

Housing materialAluminum
