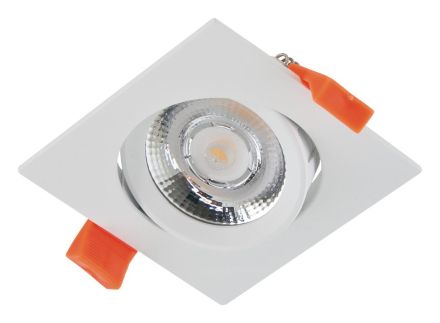

EVN P34060102 3000K 6W 430lm 100-250V mains quad. Sb LED recessed ceiling spotlight

EVN P34060102 3000K 6W 430lm 100-250V mains quad. Sb LED recessed ceiling spotlight

In stock

SKU: 810879

Price on request

€39.81

€0

Overview

The COB-LED recessed ceiling light can be used for a wide range of indoor applications, such as effect lighting, room lighting, accent lighting and much more. There are no additional costs for lamps with this light, as the power is supplied by a permanently installed LED chip. The light is also delivered ready for connection. This means that the power supply is already connected to the light via a 15 cm long cable. The swivel angle is 30°.

Property	Value
System power:	6 W
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	24 mm
With operating device:	yes
Suitable for Recessed installation:	yes
Length:	82 mm
Width:	82 mm
Height/depth:	26 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Beam angle:	medium beam 21-40°
Impact resistance:	IK02
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high-gloss
Luminous flux:	430 lm
Cover material:	transparent plastic
Luminaire cover with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for Surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	1 to 45 °C
Luminous intensity:	1256 cd
Number of poles:	2
Connection type:	Screw terminal
Luminous efficacy:	71 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Replaceable operating device:	yes
DALI-2 dimming:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Installation diameter:	68 mm
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HAB3000K 6W 430lm 100-250V mains quad. Sb

Manufacturer

HANP34060102

GTIN4037293009386

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceYes

Rated ambient temperature according to IEC 62722-2-11 to 45 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width82 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter68 mm

Installation height/depth24 mm

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth26 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy71lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux430lm

Light intensity1256 cd

Light distributorReflector

Light distributionSymmetrical

Length82 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Number of poles2

ReflectorHigh gloss

Impact resistanceIK02

IP protection)IP20

Protection classII

Voltage typeAC

System performance6W

AdjustabilitySwiveling

Cover materialPlastic transparent

Housing materialAluminum
