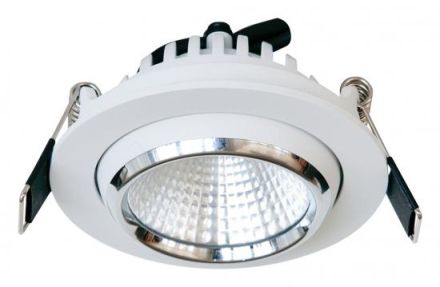

EVN PC20080102 round white sb 8W 230V 2700K 38° 600lm LED recessed ceiling spotlight

EVN PC20080102 round white sb 8W 230V 2700K 38° 600lm LED recessed ceiling spotlight

In stock

SKU: 810536

Price on request

€43.23

€0

Overview

LED recessed ceiling light for a wide range of indoor applications. Effect lighting, room lighting, accent lighting and much more can be implemented with this light. Additional costs for lamps are not required with this light, as the power is supplied by a permanently installed LED chip. As the light can be connected directly to the 230V supply line, additional costs for operating devices are not required. The swivel angle is 25°.

Property	Value
System power:	8 W
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	80 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	45 mm
With Operating device:	no
Suitable for recessed mounting:	yes
Height/depth:	50 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	2700 K
Nominal voltage:	230 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	not required
Beam angle:	medium beam 21-40°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high gloss
Luminous flux:	600 lm
Cover material:	transparent glass
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for Busbar mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Surface brushed:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Light distributor:	reflector
Light emission:	direct
Luminous intensity:	1752 cd
Number of poles:	2
Connection type:	other
Luminaire luminous efficacy:	75 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable operating device:	no
DALI-2 dimming:	no
Luminous flux maintenance at avg. Service life 35,000 h at 25 °C ambient temperature:	20 %
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Installation diameter:	72 mm
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABRound white sb 8W 230V 2700K 38° 600lm

Manufacturer

HANPC20080102

GTIN4037293404723

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter80 mm

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter72 mm

Installation height/depth45 mm

Color temperature2700K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth50 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy75lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux600lm

Light intensity1752 cd

Light distributorReflector

Light distributionSymmetrical

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Number of poles2

ReflectorHigh gloss

IP protection)IP20

Protection classII

Voltage typeAC

System performance8W

AdjustabilitySwiveling

Cover materialGlass transparent

Housing materialAluminum
