EVN PC20090140 PR black white 4000K 8.4W 1060lm LED recessed ceiling spotlight

EVN PC20090140 PR black white 4000K 8.4W 1060lm LED recessed ceiling spotlight

In stock

SKU: 810585

Price on request

€54.59

€0

Overview

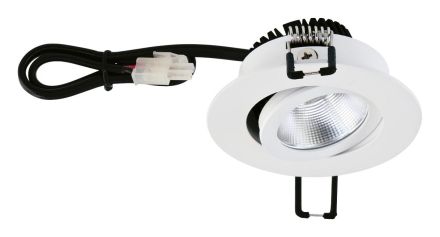

The COB-LED recessed ceiling light can be used for a wide range of indoor applications, such as effect lighting, room lighting, accent lighting and much more. Since it also has the MM marking, it can even be used in furniture construction. Additional costs for lamps are not required with this light, as the power is supplied by a permanently installed LED chip. Thanks to the constant current supply, several lights can also be operated via one power supply unit, whereby the optionally available 6-way AMP distributor (P-LEDAMP006) can be used. The 30 cm long connecting cable is equipped with an AMP plug. The type of dimming depends on the power supply unit used. If each light is to be operated with its own power supply unit, the PLD109 would be the perfect addition, which can be easily connected to the light via the AMP plug and can also be dimmed via both leading and trailing edge phase control. The swivel angle is 20 °, housing color similar to RAL9003.

Property	Value
System power:	8.4 W
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	83 mm
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	41 mm
With Operating device:	no
Suitable for recessed mounting:	yes
Height/depth:	37 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	4000 K
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Beam angle:	medium beam 21-40°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high-gloss
Luminous flux:	1060 lm
Cover material:	transparent glass
Covering of the luminaire with thermal insulation material possible:	no
Light color:	white
Suitable for Busbar mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	powder-coated
Surface brushed:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light distributor:	reflector
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-20 to 40 °C
Luminous intensity:	3096 cd
Number of poles:	2
Connection type:	other
Luminous efficacy:	126 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Color consistency (McAdam ellipse):	SDCM3
Replaceable control gear:	no
DALI-2 dimming:	no
Luminous flux maintenance at average. Service life 50,000 h at 25 °C ambient temperature:	20 %
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Installation diameter:	68 mm
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABPR black white 4000K 8.4W 1060lm

Manufacturer

HANPC20090140

GTIN4037293000673

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter83 mm

Rated ambient temperature according to IEC 62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter68 mm

Installation height/depth41 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI90-100

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth37 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy126lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1060lm

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.20 %

Light intensity3096 cd

Light distributorReflector

Light distributionSymmetrical

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionNo

Number of poles2

ReflectorHigh gloss

IP protection)IP20

Protection classIII

System performance8.4W

AdjustabilitySwiveling

Cover materialGlass transparent

Housing materialAluminum
