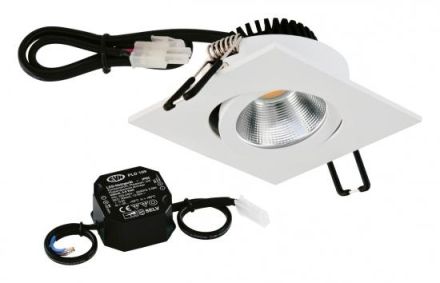

EVN PC24N60140 quad sb white 4000K 6W 683lm 350mA STL LED recessed ceiling spotlight

EVN PC24N60140 quad sb white 4000K 6W 683lm 350mA STL LED recessed ceiling spotlight

In stock

SKU: 810522

HAB:Quad sb white 4000K 6W 683lm 350mA STL

Manufacturer:EVN

HAN:PC24N60140

GTIN:4037293406079

Covering the luminaire with thermal insulation material possible:No

All specifications

Price on request

€67.05

€0

Into a basketIn the basketGo

Overview

The COB-LED ceiling recessed light can be used for a wide range of indoor applications, such as effect lighting, room lighting, accent lighting and much more. Since it also has the MM marking, it can even be used in furniture construction. There are no additional costs for lamps with this light, as the power is supplied by a permanently installed LED chip. Since the power supply unit is already included in the scope of delivery, there are no additional costs for this either. The swivel angle is 20°, housing color similar to RAL9003.

Property	Value
System power:	6 W
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	38 mm
With operating device:	yes
Suitable for Recessed installation:	yes
Length:	83 mm
Width:	83 mm
Height/depth:	32 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	90-100
Suitable for Ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Beam angle:	medium beam 21-40°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high-gloss
Luminous flux:	683 lm
Cover material:	transparent glass
Luminaire cover with thermal insulation material possible:	no
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for Cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	yes
Dimming leading edge:	yes
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light distributor:	reflector
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-20 to 40 °C
Luminous intensity:	1995 cd
Number of poles:	2
Connection type:	other
Luminous efficacy:	113 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Color consistency (McAdam ellipse):	SDCM3
Replaceable control gear:	yes
DALI-2 dimming:	no
Luminous flux maintenance at average. Service life 50,000 h at 25 °C ambient temperature:	20 %
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Installation diameter:	68 mm
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABQuad sb white 4000K 6W 683lm 350mA STL

Manufacturer

HANPC24N60140

GTIN4037293406079

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceYes

Rated ambient temperature according to IEC 62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width83 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeYes

Dimming phase controlYes

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter68 mm

Installation height/depth38 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI90-100

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth32 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy113lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux683lm

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.20 %

Light intensity1995 cd

Light distributorReflector

Light distributionSymmetrical

Length83 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionNo

Number of poles2

ReflectorHigh gloss

IP protection)IP20

Protection classII

System performance6W

AdjustabilitySwiveling

Cover materialGlass transparent

Housing materialAluminum
