EVN PC44151002 EDS IP44 15W 24V/DC 1130lm 120° 3000K LED recessed ceiling spotlight

EVN PC44151002 EDS IP44 15W 24V/DC 1130lm 120° 3000K LED recessed ceiling spotlight

In stock

SKU: 810510

Price on request

€115.48

€0

Overview

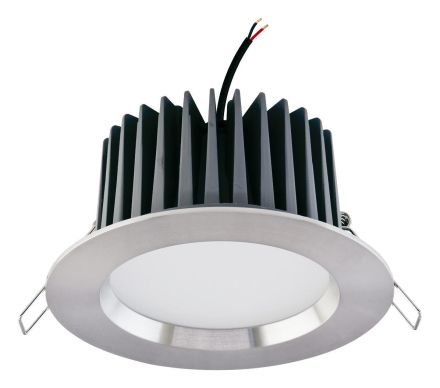

High-quality LED recessed ceiling light made of stainless steel and aluminum heat sink. Thanks to the protection class, the light is not only suitable for indoor use, but also for protected outdoor areas, such as in canopies or patio roofs. Thanks to operation via DC voltage, several lights can be easily connected to an LED power supply. Since a powerful LED chip is built into the light, there are no additional costs for lamps. The type of dimming depends on the power supply used.

Property	Value
System power:	15 W
Housing color:	Stainless steel
Housing material:	Aluminum
Protection class (IP):	IP44
Outer diameter:	145 mm
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	56 mm
With Operating device:	no
Suitable for recessed mounting:	yes
Height/depth:	56 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Nominal voltage:	24 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device voltage controlled
Beam angle:	extremely wide beam>80°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Luminous flux:	1540 lm
Cover material:	opal plastic
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	DC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	untreated
Brushed surface:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming Phase control:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Zigbee dimming:	no
Push-button dimming:	no
Without dimming function:	no
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-20 to 50 °C
Luminous intensity:	837 cd
Number of poles:	2
Connection type:	other
Luminous efficacy:	102.6 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable control gear:	no
Dimming DALI-2:	no
Constant luminous flux control:	no
Adjustable color temperature:	no
Beam angle adjustable:	no
Installation diameter:	120 mm
Emergency power supply integrated:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABEDS IP44 15W 24V/DC 1130lm 120° 3000K

Manufacturer

HANPC44151002

GTIN4037293403924

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter145 mm

Rated ambient temperature according to IEC 62722-2-1-20 to 50 °C

Operating deviceLED control gear voltage controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter120 mm

Installation height/depth56 mm

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorStainless steel

Height/Depth56 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy102.6lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1540lm

Light intensity837 cd

Light distributionSymmetrical

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage24V

Emergency power supply integratedNo

Brushed surfaceYes

Surface protectionUntreated

Without dimming functionNo

Number of poles2

IP protection)IP44

Protection classIII

Voltage typeDC

System performance15W

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
