EVN PC650N613D2W IP65 6W 2000K-3000K 600lm EDS LED recessed ceiling spotlight

EVN PC650N613D2W IP65 6W 2000K-3000K 600lm EDS LED recessed ceiling spotlight

In stock

SKU: 811474

Price on request

€83.33

€0

Overview

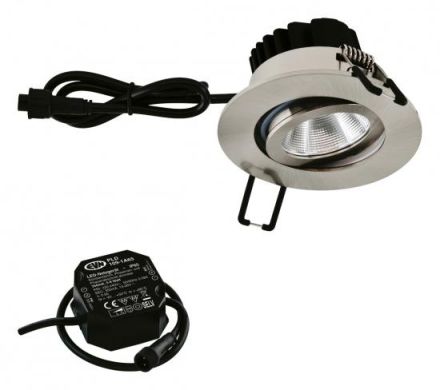

The COB-LED recessed ceiling light is equipped with a dim2warm LED, which means that when dimmed, the light color changes in the color range of 2000K-3000K. This allows for a wide range of indoor applications, such as effect lighting, room lighting, accent lighting and much more. When installed in closed ceilings, the light achieves protection class IP65. As a result, the light can of course also be used for damp room applications and outdoors. Since it also has the MM marking, it can even be used in furniture construction. There are no additional costs for lamps with this light, as the power is supplied by a permanently installed LED chip. Since the power supply unit is already included in the scope of delivery, there are no additional costs for this either. The swivel angle is 20°. The specified 600lm are achieved in undimmed operation (3000K), while 60lm are achieved with full dimming (2000K).

Property	Value
System power:	6 W
Housing color:	Stainless steel
Housing material:	Aluminum
Protection class (IP):	IP65
Outer diameter:	83 mm
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	45 mm
With Operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	48.5 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	2000 to 3000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	90-100
Suitable for Ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Beam angle:	medium beam 21-40°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	high-gloss
Luminous flux:	60 to 600 lm
Cover material:	transparent glass
Luminaire cover with thermal insulation material possible:	no
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for Cable system:	no
Surface protection:	other
Brushed surface:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	yes
Dimming leading edge:	yes
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light distributor:	reflector
Light emission:	direct
Rated ambient temperature according to IEC 62722-2-1:	-20 to 40 °C
Number of poles:	2
Connection type:	other
Suitable for computer workstations according to EN 12464-1:	no
Color consistency (McAdam ellipse):	SDCM3
Replaceable operating device:	yes
Dimming DALI-2:	no
Constant luminous flux control:	no
Adjustable beam angle:	no
Installation diameter:	68 mm
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HABIP65 6W 2000K-3000K 600lm EDS

Manufacturer

HANPC650N613D2W

GTIN4037293024181

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter83 mm

Rated ambient temperature according to IEC 62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeYes

Dimming phase controlYes

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter68 mm

Installation height/depth45 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature2000 to 3000 K

Color rendering index CRI90-100

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorStainless steel

Height/Depth48.5 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux60 to 600 lm

Light distributorReflector

Light distributionSymmetrical

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceYes

Surface protectionOther

Without dimming functionNo

Number of poles2

ReflectorHigh gloss

IP protection)IP65

Protection classII

System performance6W

AdjustabilitySwiveling

Cover materialGlass transparent

Housing materialAluminum
