EVN 673210 round aluminum IP66 GU10 max.35W 230V recessed floor spotlight

EVN 673210 round aluminum IP66 GU10 max.35W 230V recessed floor spotlight

In stock

SKU: 809837

Price on request

€125.07

€0

Overview

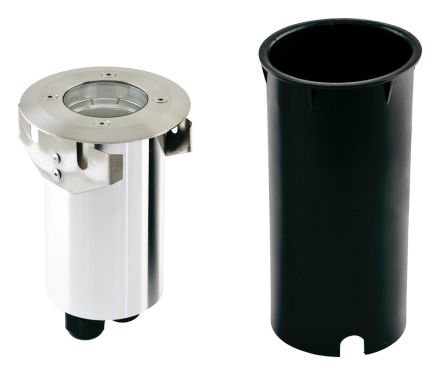

The lamp body is made of solid aluminum, while the cover plate is made of V4A stainless steel. The 2 cable glands on the floor, which are suitable for cables up to 12mm in diameter, make it possible to wire several lamps through, which makes installation much easier for longer cable runs. It is possible to install the lamp without the plastic installation pot included in the delivery; in this case, the installation depth is 160mm and the required hole cutout is 75mm. The high-voltage socket allows different lamps up to a maximum of 35W to be operated in the lamp. The maximum driving speed is 20km/h.

Property	Value
Nominal voltage:	230 V
Socket:	GZ10
With light source:	no
With control gear:	no
Installation diameter:	88 mm
Housing colour:	stainless steel
Control gear:	not required
Outer diameter:	98 mm
Suitable for number of light sources:	1
Protection class (IP):	IP66
Protection class:	I
Electrical connection with plug-in system:	no
Cover material:	transparent glass
Adjustable:	no
Roll-over possible:	yes
Max. load:	500 kg
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Suitable for lamp power:	0.1 to 35 W
Height/depth:	159 mm
Installation height/depth:	185 mm
Type of wiring:	suitable for through-wiring
Housing material:	aluminum
Replaceable operating device:	no
Constant luminous flux control:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABRound aluminum IP66 GU10 max.35W 230V

Manufacturer

HAN673210

GTIN4037293673617

Type of wiringSuitable for through wiring

Replaceable operating deviceNo

Outer diameter98 mm

Operating deviceNot required

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter88 mm

Installation height/depth185 mm

Electrical connection with plug-in systemNo

VersionGZ10

Suitable for number of light sources1

Suitable for lamp power0.1 to 35 W

Housing colorStainless steel

Height/Depth159 mm

IFTTT support availableNo

AdjustableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Max. load500 kg

With operating deviceNo

With light sourceNo

Nominal voltage230V

Without dimming functionNo

IP protection)IP66

Protection classI

Voltage typeAC

Cover materialGlass transparent

Housing materialAluminum

RolloverYes
