EVN 678235 round black aluminum IP67 GU10 max.35W 230V recessed floor spotlight LB20

EVN 678235 round black aluminum IP67 GU10 max.35W 230V recessed floor spotlight LB20

In stock

SKU: 809839

Price on request

€156.71

€0

Overview

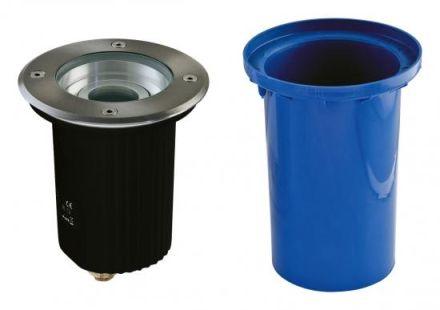

The lamp body is made of plastic, while the cover plate is made of V2A stainless steel. The cable is fed in via the cable gland on the floor, which is suitable for cables up to 9mm in diameter. The second cable gland included in the delivery can optionally be attached to the lamp, which makes through-wiring easy. It is possible to install the lamp without the plastic installation pot included in the delivery; in this case, the installation depth is 180mm and the required hole cutout is 137mm. The high-voltage socket allows different lamps up to a maximum of 35W to be operated in the lamp. The maximum driving speed is 20km/h, the swivel angle is 30°.

Property	Value
Nominal voltage:	230 V
Socket:	GU10
With light source:	no
With control gear:	no
Installation diameter:	143 mm
Housing color:	stainless steel
Control gear:	not required
Outer diameter:	150 mm
Suitable for number of light sources:	1
Protection class (IP):	IP67
Protection class:	II
Electrical connection with plug-in system:	no
Cover material:	transparent glass
Adjustable:	yes
Roll-over:	yes
Max. load:	3500 kg
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in the device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Suitable for lamp power:	0.1 to 35 W
Height/depth:	175 mm
Installation height/depth:	195 mm
Type of wiring:	suitable for through-wiring
Housing material:	aluminum
Replaceable operating device:	no
Constant luminous flux control:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABRound black aluminum IP67 GU10 max.35W 230V

Manufacturer

HAN678235

GTIN4037293672351

Type of wiringSuitable for through wiring

Replaceable operating deviceNo

Outer diameter150 mm

Operating deviceNot required

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter143 mm

Installation height/depth195 mm

Electrical connection with plug-in systemNo

VersionGU10

Suitable for number of light sources1

Suitable for lamp power0.1 to 35 W

Housing colorStainless steel

Height/Depth175 mm

IFTTT support availableNo

AdjustableYes

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Max. load3500 kg

With operating deviceNo

With light sourceNo

Nominal voltage230V

Without dimming functionNo

IP protection)IP67

Protection classII

Voltage typeAC

Cover materialGlass transparent

Housing materialAluminum

RolloverYes
