EVN 67943553D dimmable IP67 EDS GU10 5W LED recessed floor spotlight

EVN 67943553D dimmable IP67 EDS GU10 5W LED recessed floor spotlight

In stock

SKU: 810828

Price on request

€87.71

€0

Overview

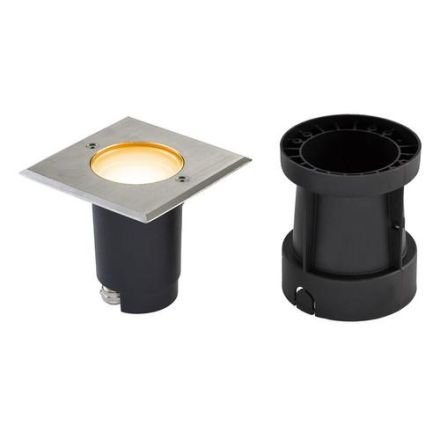

The lamp body is made of aluminum, while the cover plate is made of V2A stainless steel. The cable is fed in via the cable gland on the floor, which is suitable for cables up to 9mm in diameter. It is possible to install the lamp without the plastic installation pot included in the delivery; in this case, the hole cutout is 96mm while the installation depth remains unchanged. The GU10 LED lamp supplied can also be dimmed using trailing edge phase control (not suitable for electric dimmers) and can be replaced at any time if required. The maximum driving speed is 20km/h, the swivel angle is 10°. A matt protective glass is also included in the delivery.

Property	Value
Nominal voltage:	230 V
Socket:	GU10
With light source:	yes
With control gear:	no
Installation diameter:	102 mm
Housing color:	stainless steel
Control gear:	not required
Light source:	LED replaceable
Suitable for number of light sources:	1
Length:	120 mm
Protection rating (IP):	IP67
Protection class:	I
Electrical connection with plug-in system:	no
Cover material:	transparent glass
Adjustable:	yes
Light distribution:	symmetrical
Width:	120 mm
Roll-over:	yes
Rated luminous flux according to IEC 62722-2-1:	450 lm
Color temperature:	3000 K
Color rendering index CRI:	80-89
Light color:	white
Max. load:	1000 kg
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	yes
Dimming leading edge:	yes
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light distributor:	reflector
Beam angle:	medium beam 21-40°
Suitable for lamp power:	0.1 to 35 W
Max. System power:	5 W
Height/depth:	110 mm
Installation height/depth:	120 mm
Housing material:	aluminum
Replaceable operating device:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABDimmable IP67 EDS GU10 5W

Manufacturer

HAN67943553D

GTIN4037293009256

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceNo

Rated luminous flux according to IEC 62722-2-1450lm

Operating deviceNot required

Width120 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeYes

Dimming phase controlYes

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter102 mm

Installation height/depth120 mm

Electrical connection with plug-in systemNo

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionGU10

Suitable for number of light sources1

Suitable for lamp power0.1 to 35 W

Housing colorStainless steel

Height/Depth110 mm

IFTTT support availableNo

AdjustableYes

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

LampsLED replaceable

Light colorWhite

Luminous flux adjustableNo

Light distributorReflector

Light distributionSymmetrical

Length120 mm

Max. load1000 kg

Max. system performance5W

With operating deviceNo

With light sourceYes

Nominal voltage230V

Without dimming functionNo

IP protection)IP67

Protection classI

Voltage typeAC

Cover materialGlass transparent

Housing materialAluminum

RolloverYes
