EVN P441102 1W stainless steel walkable IP44 ww 3000K LED recessed floor spotlight

EVN P441102 1W stainless steel walkable IP44 ww 3000K LED recessed floor spotlight

In stock

SKU: 810295

Price on request

€26.81

€0

Overview

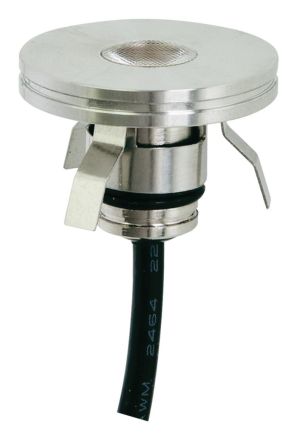

V4A stainless steel ceiling recessed light point for a wide range of indoor applications. Both effect lighting, accent lighting and much more can be implemented with this light. Several lights can be operated via one control device, which means that different light groups can be switched within a room. The light point has a 2m long connection cable. Optionally, the retaining spring can be removed to insert the light point into the wall, which reduces the hole cutout to 11mm. Since the light is operated via 350mA, the lights must be connected in series.

Property	Value
System power:	1 W
Housing color:	Stainless steel
Housing material:	Stainless steel
Protection class (IP):	IP44
Outer diameter:	28 mm
Light source:	LED not replaceable
Protection class:	III
With light source:	yes
Installation height/depth:	25 mm
With Operating device:	no
Suitable for recessed mounting:	yes
Height/depth:	19 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	3000 K
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Beam angle:	medium beam 21-40°
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	without
Luminous flux:	58 lm
Cover material:	structured glass
Covering of the luminaire with thermal insulation material possible:	no
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendant suspension:	no
Suitable for Pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	untreated
Brushed surface:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
DSI dimming:	no
Potentiometer dimming (integrated in the device):	no
Line switch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Trailing edge dimming:	no
Leading edge dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave dimming Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Luminous intensity:	271 cd
Number of poles:	2
Connection type:	other
Luminous efficacy:	58 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Replaceable operating device:	no
DALI-2 dimming:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Beam angle adjustable:	no
Installation diameter:	16 mm
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

HAB1W stainless steel walkable IP44 ww 3000K

Manufacturer

HANP441102

GTIN4037293011785

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter28 mm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter16 mm

Installation height/depth25 mm

Color temperature3000K

Color temperature adjustableNo

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorStainless steel

Height/Depth19 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy58lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux58lm

Light intensity271 cd

Light distributionSymmetrical

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Emergency power supply integratedNo

Brushed surfaceYes

Surface protectionUntreated

Without dimming functionNo

Number of poles2

ReflectorWithout

IP protection)IP44

Protection classIII

System performance1W

AdjustabilityNot adjustable

Cover materialGlass structured

Housing materialStainless steel
