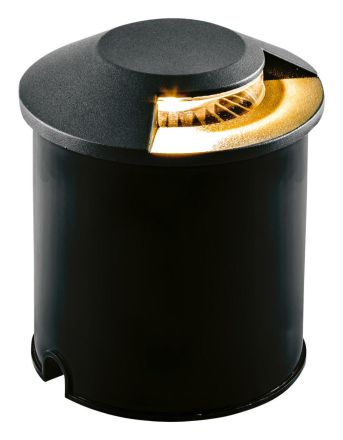

EVN P67151702 anthracite aluminum 1-way 67lm 3000K IP67 LED recessed floor spotlight LB20

EVN P67151702 anthracite aluminum 1-way 67lm 3000K IP67 LED recessed floor spotlight LB20

In stock

SKU: 811448

Price on request

€141.78

€0

Overview

The floor light is perfect as an orientation light thanks to its one-sided light output and can be installed not only in the floor but also in the wall. Installation is carried out using the plastic installation sleeve included in the delivery. A second cable gland is included in the delivery (for cables up to a maximum of 8mm in diameter), which can be used optionally to wire through multiple lights when using them. The light is walkable and can also be driven over with a bicycle, for example, but not with a car or truck. Thanks to the powder coating, the light can also be used in salty air. The light has a beam angle of 110°.

Property	Value
Nominal voltage:	220 to 240 V
With light source:	yes
With operating device:	no
Installation diameter:	118 mm
Housing color:	anthracite
Operating device:	not required
Outer diameter:	125 mm
Light source:	LED not replaceable
Protection class (IP):	IP67
Protection class:	I
Electrical connection with plug-in system:	no
Cover material:	transparent plastic
Adjustable:	no
Light distribution:	asymmetrical
Roll-over:	yes
Rated luminous flux according to IEC 62722-2-1:	67 lm
Color temperature:	3000 K
Color rendering index CRI:	80-89
Light color:	white
Max. load:	500 kg
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Beam angle:	extremely wide beam>80°
Max. System power:	7 W
Height/depth:	128 mm
Installation height/depth:	116 mm
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	1 mm²
Housing material:	aluminum
Replaceable operating device:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Max. surface temperature:	45 °C
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABAnthracite aluminum 1-way 67lm 3000K IP67

Manufacturer

HANP67151702

GTIN4037293024068

Type of wiringSuitable for through wiring

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter125 mm

Rated luminous flux according to IEC 62722-2-167lm

Operating deviceNot required

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter118 mm

Installation height/depth116 mm

Electrical connection with plug-in systemNo

Color temperature3000K

Color temperature adjustableNo

Color rendering index CRI80-89

Housing colorAnthracite

Height/Depth128 mm

IFTTT support availableNo

AdjustableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Conductor cross-section1 mm²

LampsLED not replaceable

Light colorWhite

Luminous flux adjustableNo

Light distributionAsymmetrical

Max. load500 kg

Max. system performance7W

With operating deviceNo

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles3

IP protection)IP67

Protection classI

Voltage typeAC

Cover materialPlastic transparent

Housing materialAluminum

RolloverYes
