EVN P6721502 rigid 1.5W 12V AC/DC round IP67 warm white LED recessed floor spotlight

EVN P6721502 rigid 1.5W 12V AC/DC round IP67 warm white LED recessed floor spotlight

In stock

SKU: 810297

Price on request

€55.96

€0

Overview

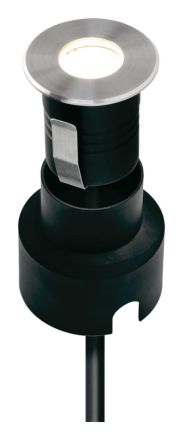

The lamp body is made of solid aluminum, while the cover plate is made of V4A stainless steel. The installation sleeve included in the delivery can be used optionally for installation, whereby the installation depth remains unchanged. To protect against accidental removal, the sleeve tapers towards the top and has a diameter of 58mm at the bottom and 39mm at the top. Since the LED chip is permanently installed, there are no additional costs for lamps. The maximum driving speed is 20 km/h. The type of dimming depends on the power supply used.

Property	Value
Nominal voltage:	12 V
With light source:	yes
With control gear:	no
Installation diameter:	36 mm
Housing color:	stainless steel
Control gear:	LED control gear voltage controlled
Outer diameter:	45 mm
Light source:	LED not replaceable
Protection class (IP):	IP67
Protection class:	III
Electrical connection with plug-in system:	no
Cover material:	structured glass
Adjustable:	no
Light distribution:	symmetrical
Roll-over:	yes
Rated luminous flux according to IEC 62722-2-1:	62 lm
Color temperature:	3000 K
Light color:	white
Max. load:	3500 kg
Voltage type:	DC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Beam angle:	medium beam 21-40°
Max. System power:	1.5 W
Height/depth:	59 mm
Installation height/depth:	68 mm
Number of poles:	2
Housing material:	aluminum
Replaceable operating device:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABRigid 1.5W 12V AC/DC round IP67 warm white

Manufacturer

HANP6721502

GTIN4037293403023

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter45 mm

Rated luminous flux according to IEC 62722-2-162lm

Operating deviceLED control gear voltage controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter36 mm

Installation height/depth68 mm

Electrical connection with plug-in systemNo

Color temperature3000K

Color temperature adjustableNo

Housing colorStainless steel

Height/Depth59 mm

IFTTT support availableNo

AdjustableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

LampsLED not replaceable

Light colorWhite

Luminous flux adjustableNo

Light distributionSymmetrical

Max. load3500 kg

Max. system performance1.5W

With operating deviceNo

With light sourceYes

Nominal voltage12V

Without dimming functionNo

Number of poles2

IP protection)IP67

Protection classIII

Voltage typeDC

Cover materialGlass structured

Housing materialAluminum

RolloverYes
